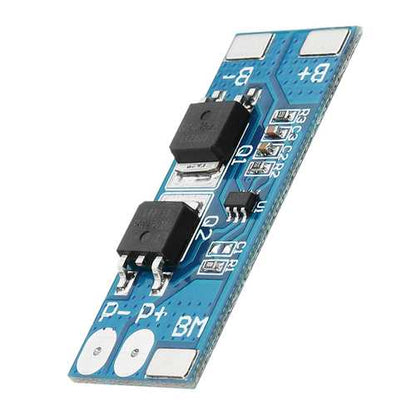

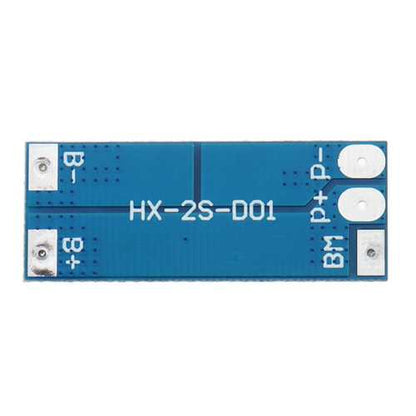

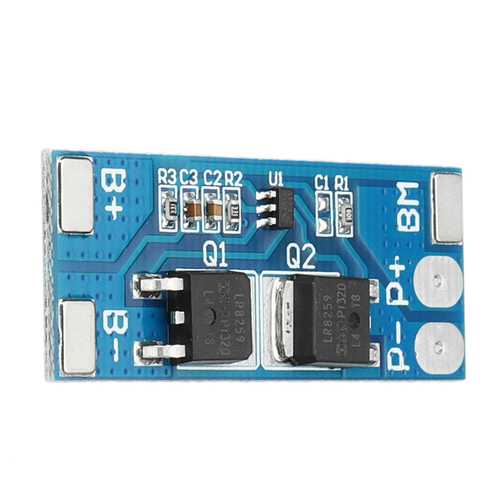

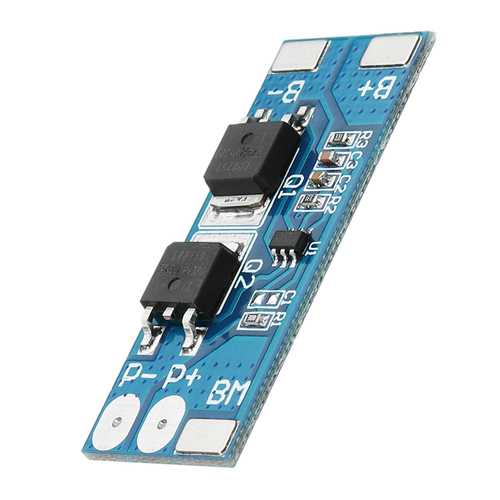

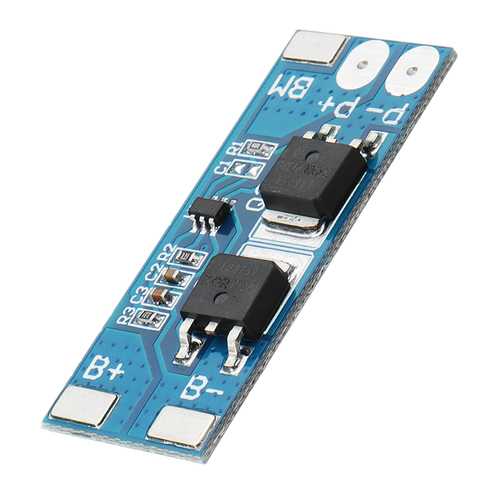

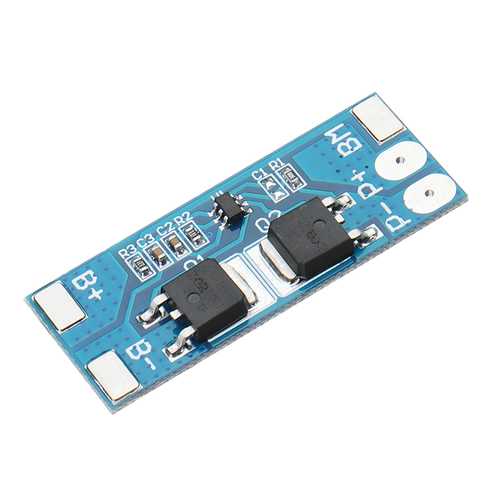

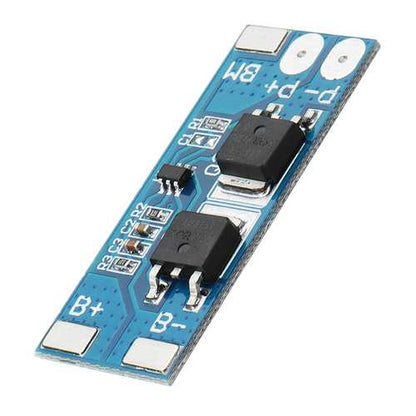

2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
Regular price
$18.94 CAD
Regular price
Sale price
$18.94 CAD
Unit price
/
per
Couldn't load pickup availability
Description:Model: HX-2S-01Type: Voltage RegulatorDissipation Power: 50WSupply Voltage: 8.4VApplication: 18650 lithium battery
Overcharge voltage range: 4.25-4.35v±0.05V
Over-discharge voltage range: 2.5-3.0v±0.05V
Working current: 0-5A
Working temperature: -40---+50 °C
Instantaneous current: 6-7A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 5uA
Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ
Short circuit protection: protection, charge recoverySize: 38*8*2.6mm

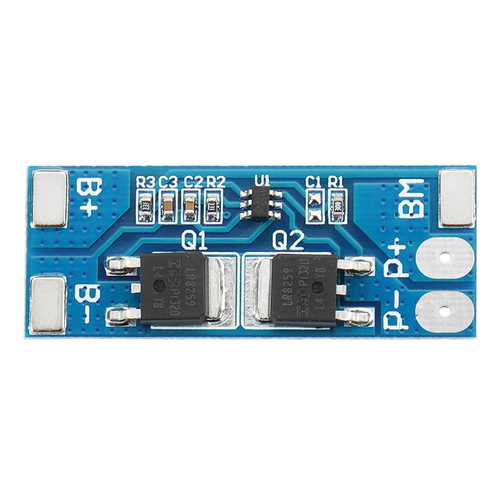

Solder joint description:
B+: Connect the battery positive pole;
B-: Connect the battery negative pole;
MB: Connect the connection point between battery 1 and battery 2;
P+: charging/discharging terminal positive (common terminal/discharge terminal shared);
P-: Connect the negative terminal of the charge/discharge terminal (common to the charge terminal/discharge terminal).
Package included: 1 x 2S 8A lithium battery protection board
