M5Stack ESP32 MPU9250 9Axies Motion Sensor Core Extensible IoT Development Board Kit
M5Stack ESP32 MPU9250 9Axies Motion Sensor Core Extensible IoT Development Board Kit
Regular price
$72.94 CAD
Regular price
Sale price
$72.94 CAD
Unit price
/
per
Couldn't load pickup availability
Introduction: M5Stack GRAY Kit is from one of the M5Stack development kit series, it's an upgrade from the Basic kits. In comparison, Gray kit provides an extra IMU sensor, MPU6886+BMM150. With an IMU posture sensor, you can include posture detection in your work: accelerated speed, angulation, and trajectory detection. You can make relative products like sports data collector, 3D remote gesture controller and more. GRAY is M5 Core device. It's modular, stackable, scalable, and portable device is powered with an ESP-32 core, which makes it open-source, low cost, full-function, and easy for developers to handle new product development on all stages include circuit design, PCB design, software, mold design, and production. Ever wanted to explore the fastest way of IoT prototyping, M5Stack development board is the perfect solution. Not like others, M5Stack development board is highly productized, covered with an industrial-grade case, and ESP32-based development board. ESP32 is a Wi-Fi & Bluetooth chip contains a dual-core and 4MB of SPI Flash. Together with 30+ M5Stack stackable modules( M5Modules-link), 40+ extendable units( M5Units-link ), and different levels of program language, you can create and verify your IoT product in a very short time. Supported development platforms and program languages: , Blockly language with UIFlow(link), Micropython. Regardless of what level program skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productization. If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade from ESP8266. In comparison, ESP32 is full-feathered with more GPIO, plenty of analog inputs and two analog outputs, multiple extra perpherials( like a spare UART ). Official development platform ESP-IDF have planted with FreeRTOS. With dual-core and real time OS you can get more organized code and much high speed processor. Product Features: 5V DC power supply USB Type-C ESP32-based 16 MByte flash + 520K RAM MPU6886+BMM150 Speaker, 3 Buttons, LCD(320*240), 1 Reset 2.4G Antenna: Proant 440 TF card slot (16G Maximum size) Battery Socket & 150 mAh Lipo Battery Extendable Pins & Holes Grove Port M-Bus Socket & Pins Development Platform UIFlow, MicroPython, ESP32 Features: 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual-mode Bluetooth (classic and BLE) Hall sensor 10x capacitive touch interface 32 kHz crystal oscillator PWM/timer input/output available on every GPIO pin SDIO master/salve 50MHz SD-card interface support Technical details:
| Resources | Parameter |
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 16MB (old: 4MB) |
| Power Input | 5V @ 150mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| LCD Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9341 |
| Speaker | 1W-0928 |
| Battery | 150mAh @ 3.7V |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 54 x 54 x 12.5 mm |
| Case Material | Plastic ( PC ) |
Pay Attention:
If you face the problem that can not upload program, please kindly try as below steps:
1. Uninstall the driver you installed before

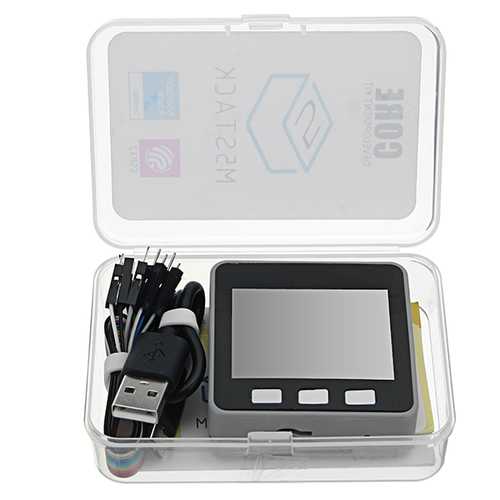

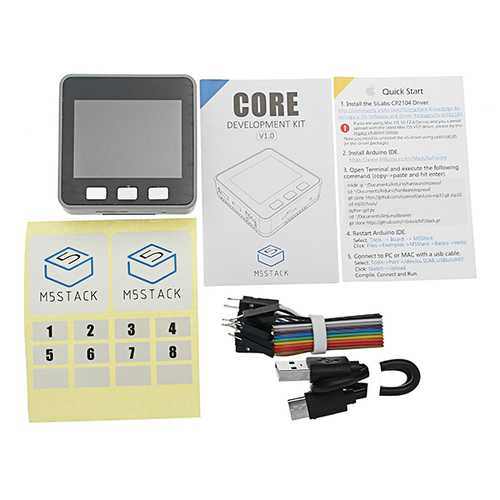

2. Dowload the older CP210x driver through our website (Download Page) Documents: Get-started Tutorial: datasheet - - MPU6886+BMM150 datasheet - Package included: 1 x M5Stack Gray Controller 1 x Basic Base 10 x Female-male Dupont 1 x Type-C USB cable 1 x User Manual
