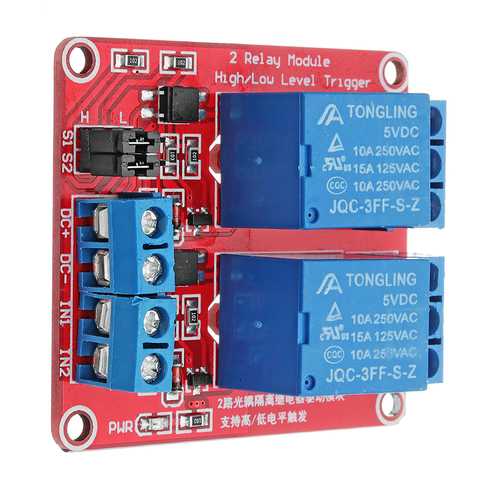

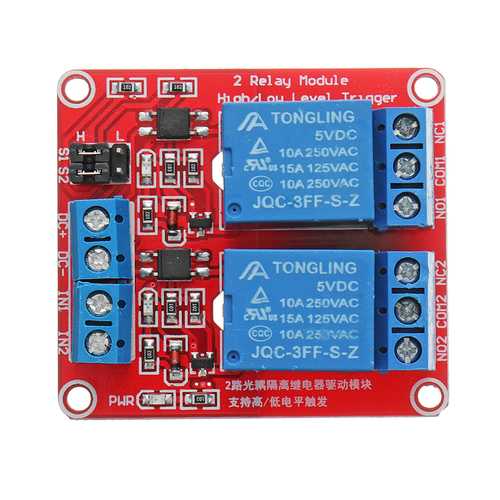

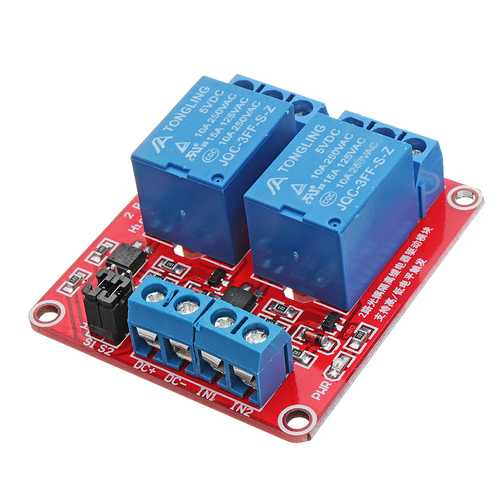

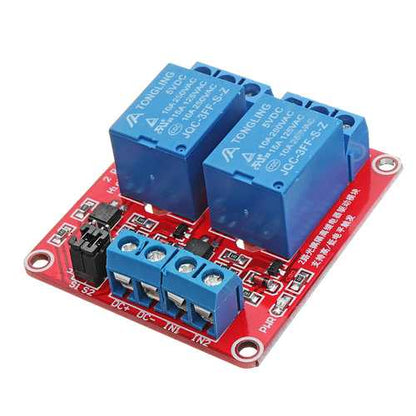

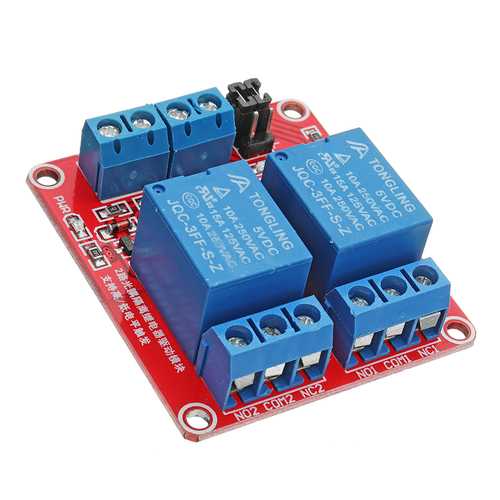

5V 2 Channel Level Trigger Optocoupler Relay Module
5V 2 Channel Level Trigger Optocoupler Relay Module
Regular price
$18.94 CAD
Regular price
Sale price
$18.94 CAD
Unit price
/
per
Couldn't load pickup availability
Description:
The module uses genuine quality relay, normally open interfaces
Using SMD optocoupler isolation, driving ability, stable performance
The module can be high or low by a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate
The power indicator (green), the relay status indicator (red)
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
Specification:
Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
Module Interface:
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay

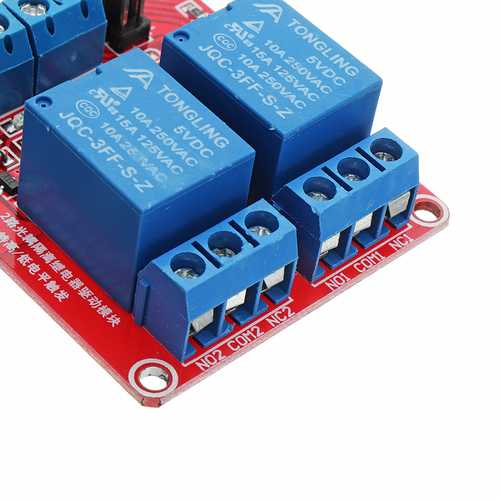

Relay Outputs:
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
Package included:
1 x 2 Channel H/L Level Trigger Optocoupler Relay module
