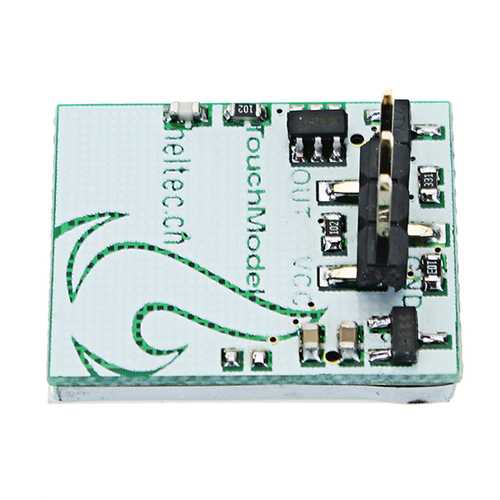

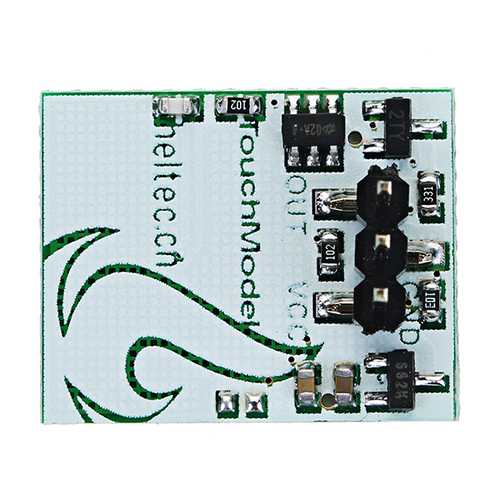

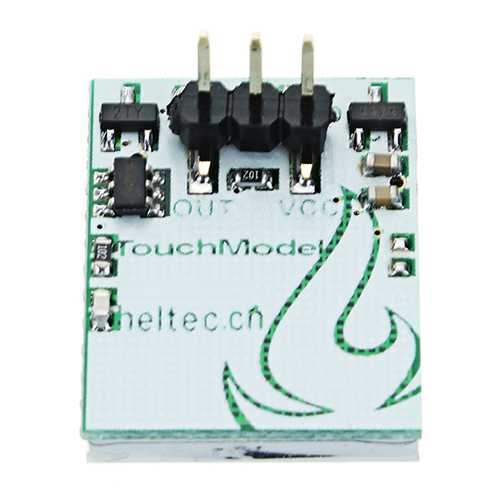

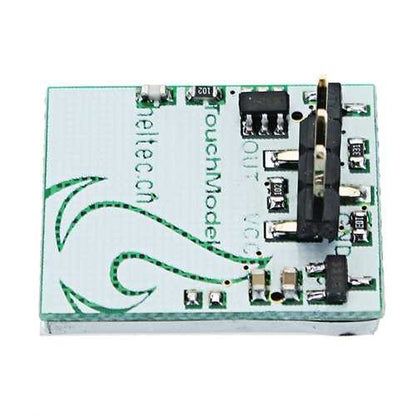

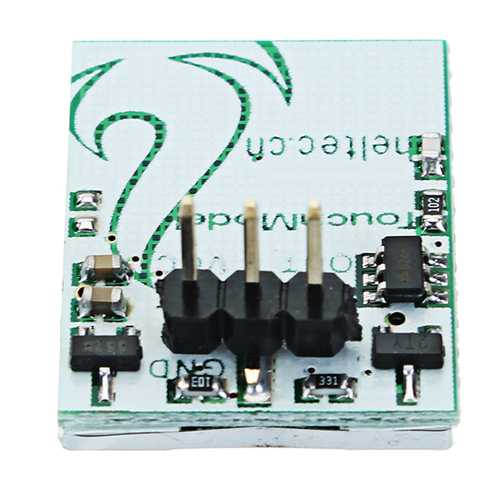

3Pcs 2.7V-6V Green HTTM Series Capacitive Touch Switch Button Module

Name: 3Pcs 2.7V-6V Green HTTM Series Capacitive Touch Switch Button Module
Brand: Burnett Canada
SKU: C122-1272701
Price: 27.04 CAD
Availability: OutOfStock

$27.04 CAD

Oferta Agotado

Cantidad

Features: 1. No mechanical components, don't wear out, an infinite life, reduce maintenance cost;2. Its sensing part can be placed into any insulation layer (usually a glass or plastic material), it is easy to make and surroundings are sealed the keyboard, to play the role of moistureproof and waterproof;3. The panel design is follow one's inclinations, arbitrary button size, shape, design, characters, trademarks, such as the perspective window arbitrary collocation, make product integral feeling is stronger;4. Compared with physical keys, touch keys are less likely to damage;5. You can change on the back of the resistance, adjust the signal output is latched output or keep output (see 3.3.2 rainfall distribution on 10-12);6. + 2.7 V ~ + 6 V input voltage range wide, + 3.3 V output signal, can be directly used to drive the relay, optical coupling, LED lights, such as the original;7. - 30 ~ + 70 'C temperature range of work;8. A touch sensitive, no lag, time delay, flash and other adverse reactions;9. The built-in anti-jamming algorithm, has good anti-interference performance.Pin definitions and parameters:

Operating voltage: + 2.7 ~ 6V
Working temperature: 30 ~ + 70 Celsius
OUT pin output voltage: + 3.3V ± 0.1V
OUT pin Maximum output current: 500mA

Package included:3 x Green Capacitive Touch Switch Button Module
