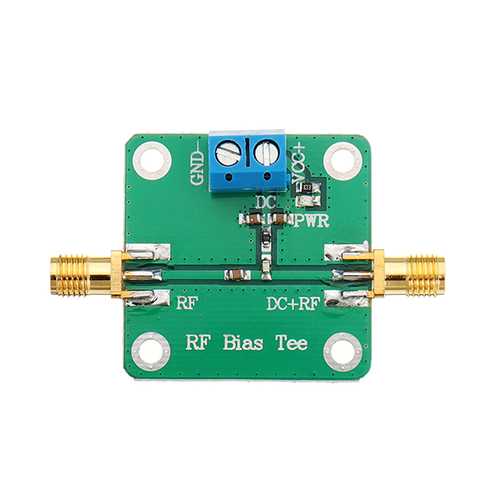

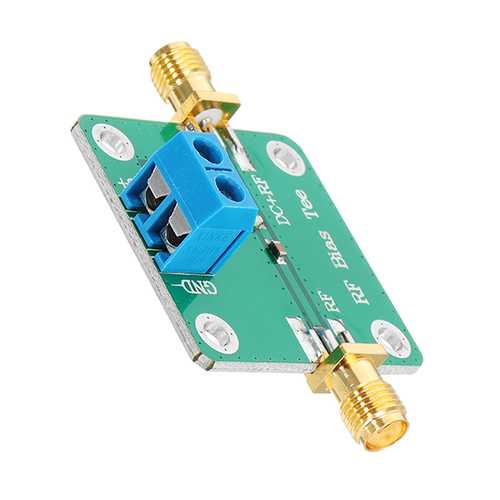

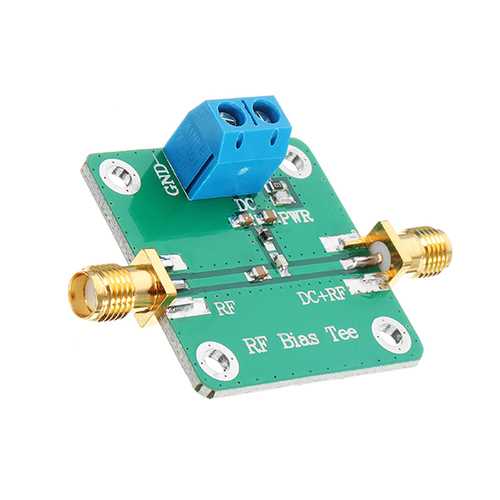

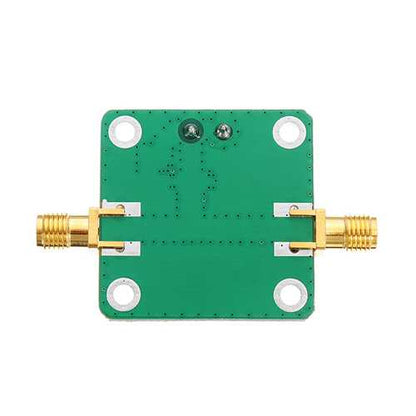

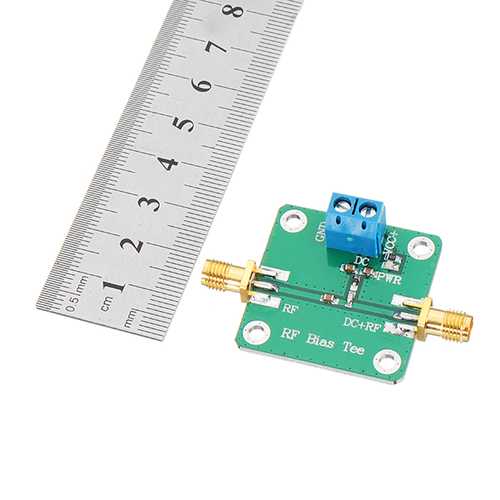

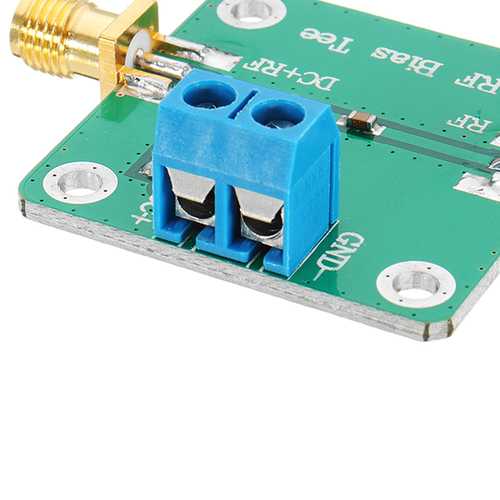

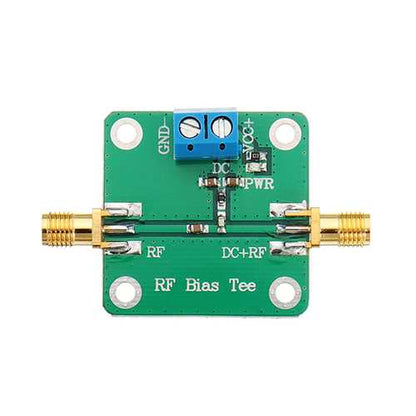

RF And Microwave DC Bias DC Feeder Module 10-6000MHz

RF And Microwave DC Bias DC Feeder Module 10-6000MHz

$25.69 CAD
$25.69 CAD
Oferta Agotado
Use: 1. RF power supply of active antenna2. The output of the broadband amplifier is straight3 communication data injected through the RF side Working parameters: 1. Frequency range: 10 - 6000MHz2. Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz3. Maximum voltage: 50V4. Maximum current: 500mA5. RF connector: SMA-K (outer screw bore)6. System impedance: 50 ohms7. Dimensions: 33mmx33mm without connector Wiring: 1.DC: external DC power supply2.RF: RF signal port (this port can only transmit RF signals)3.RF+DC: RF dc bias (this port can transmit RF and dc bias)4.GND-: DC powered common ground5.VCC+: DC power supplyPackage included:1 x RF And Microwave DC Bias DC Feeder Module 10-6000MHz
