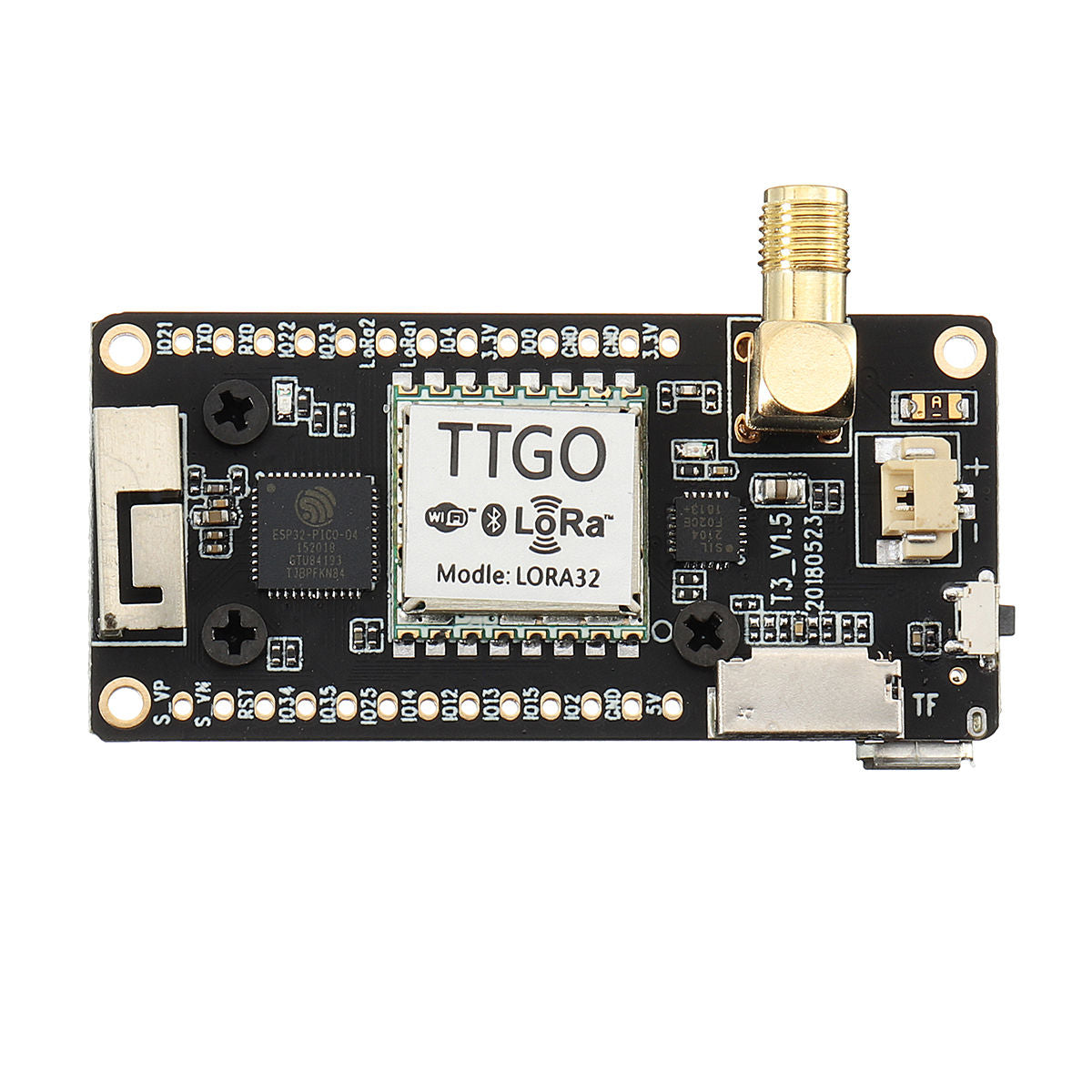

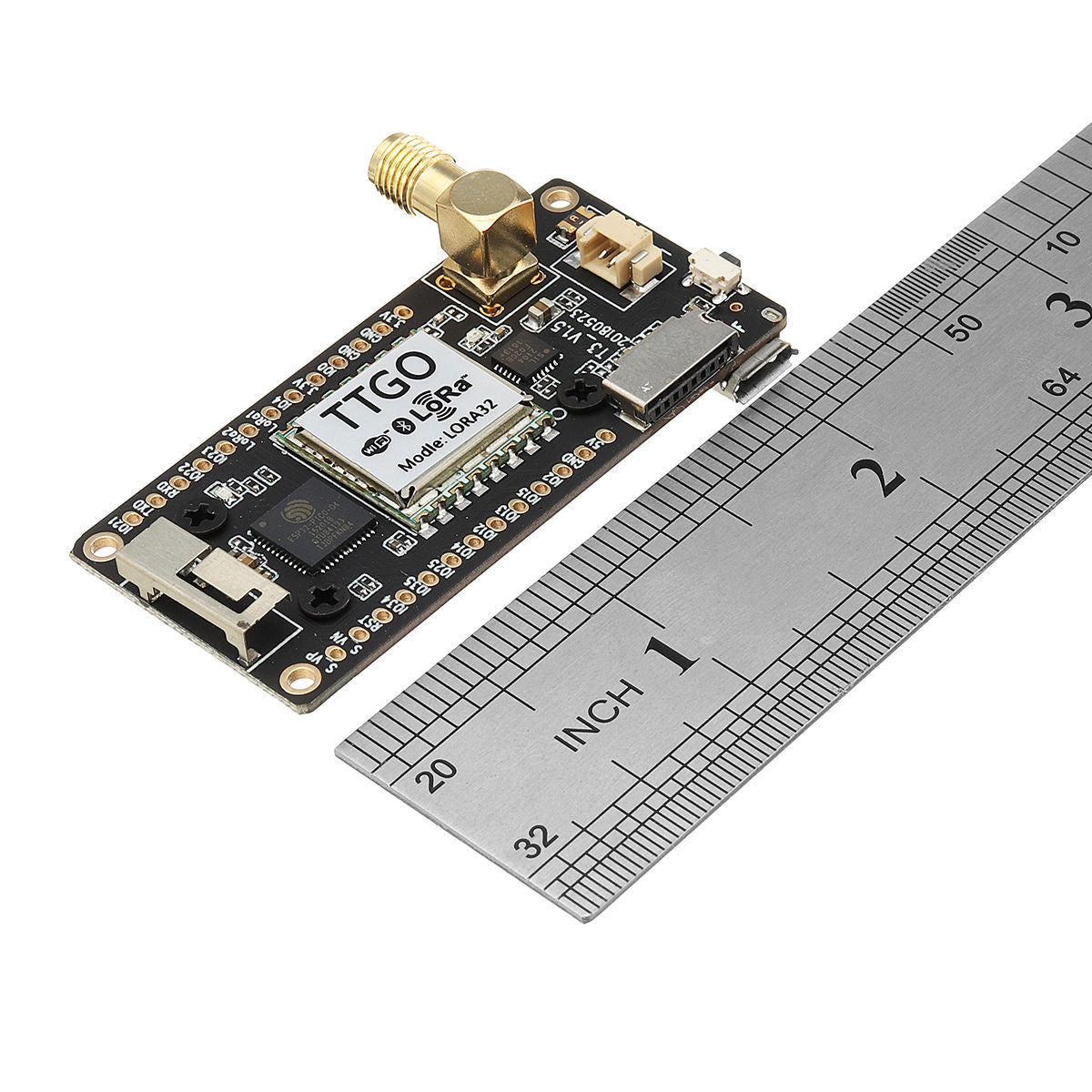

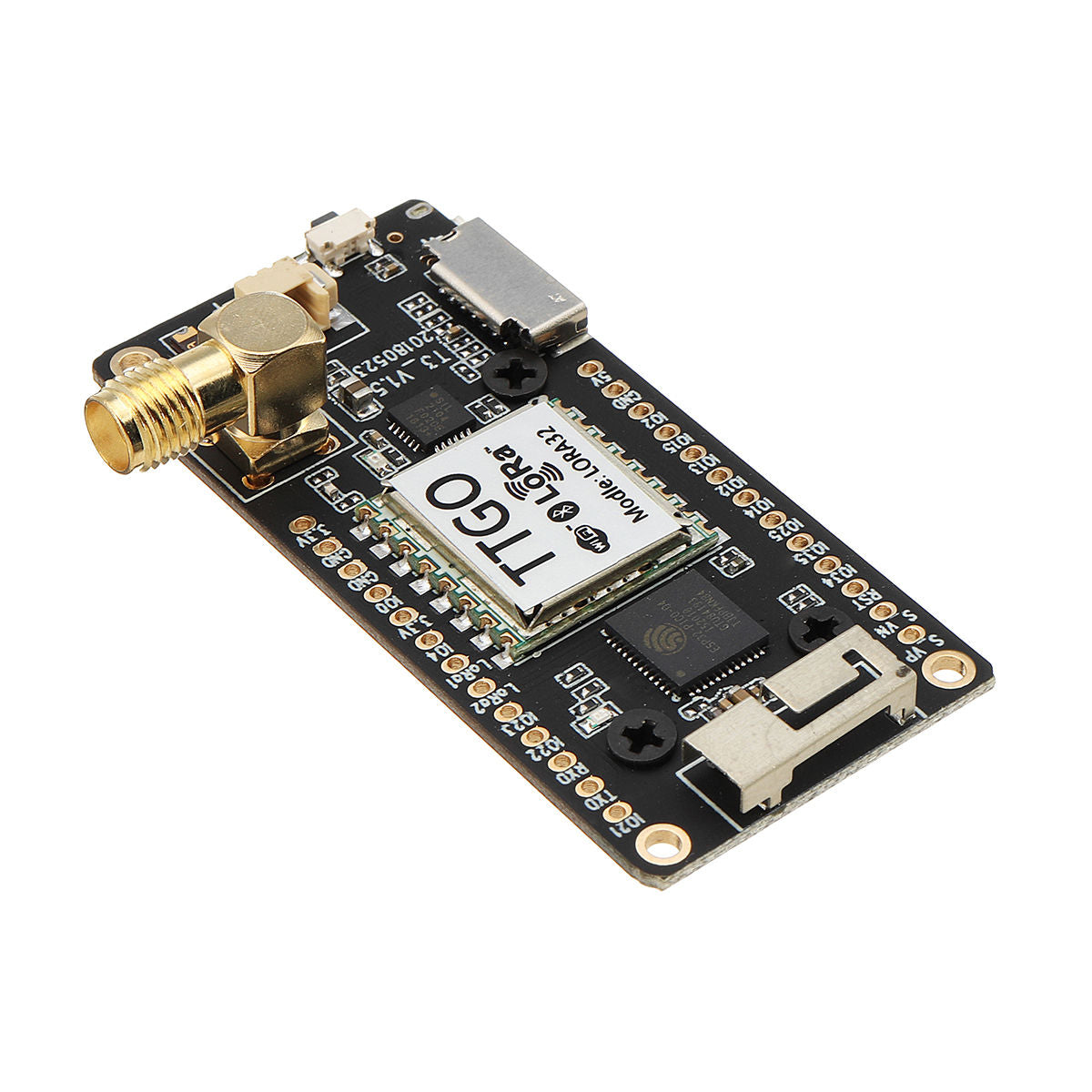

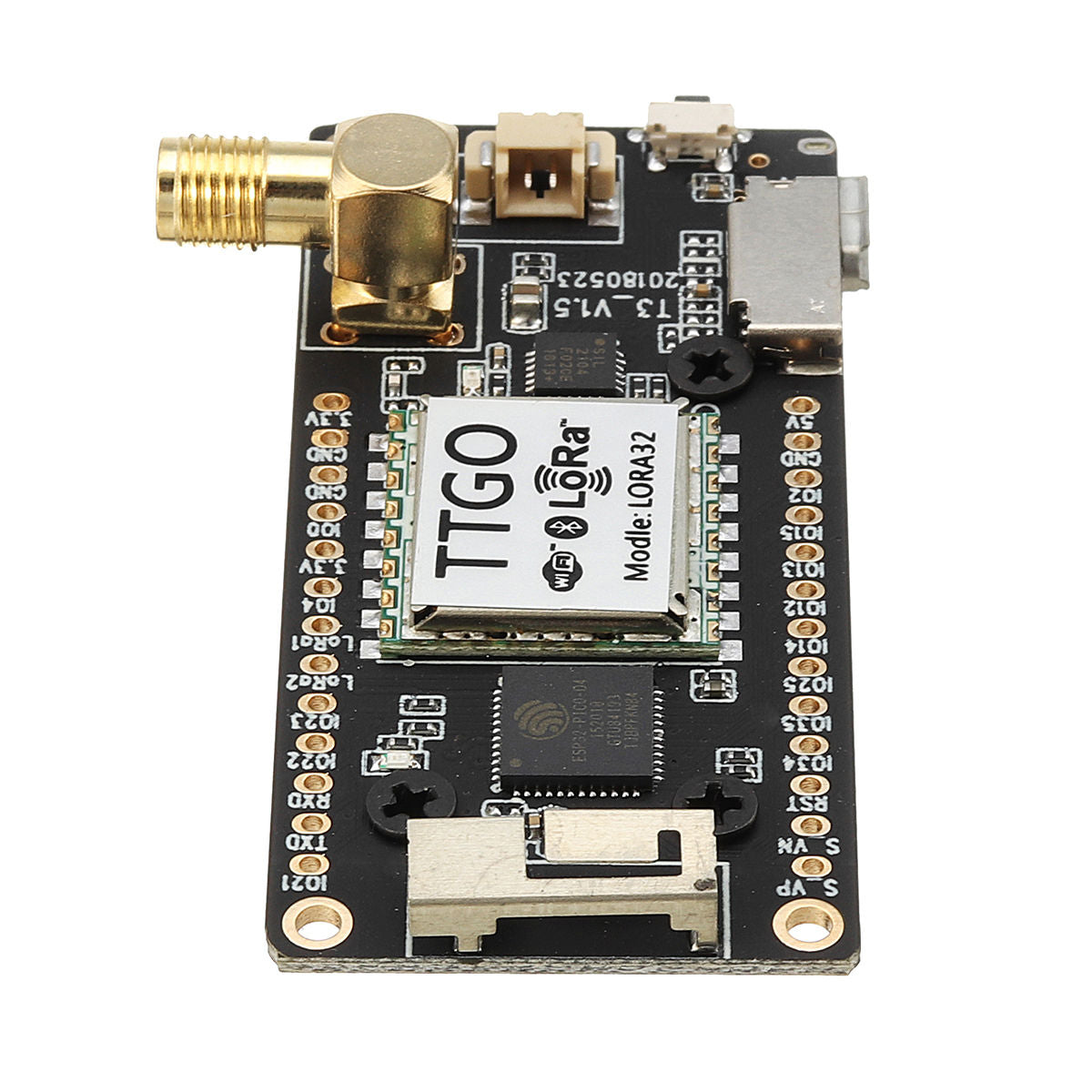

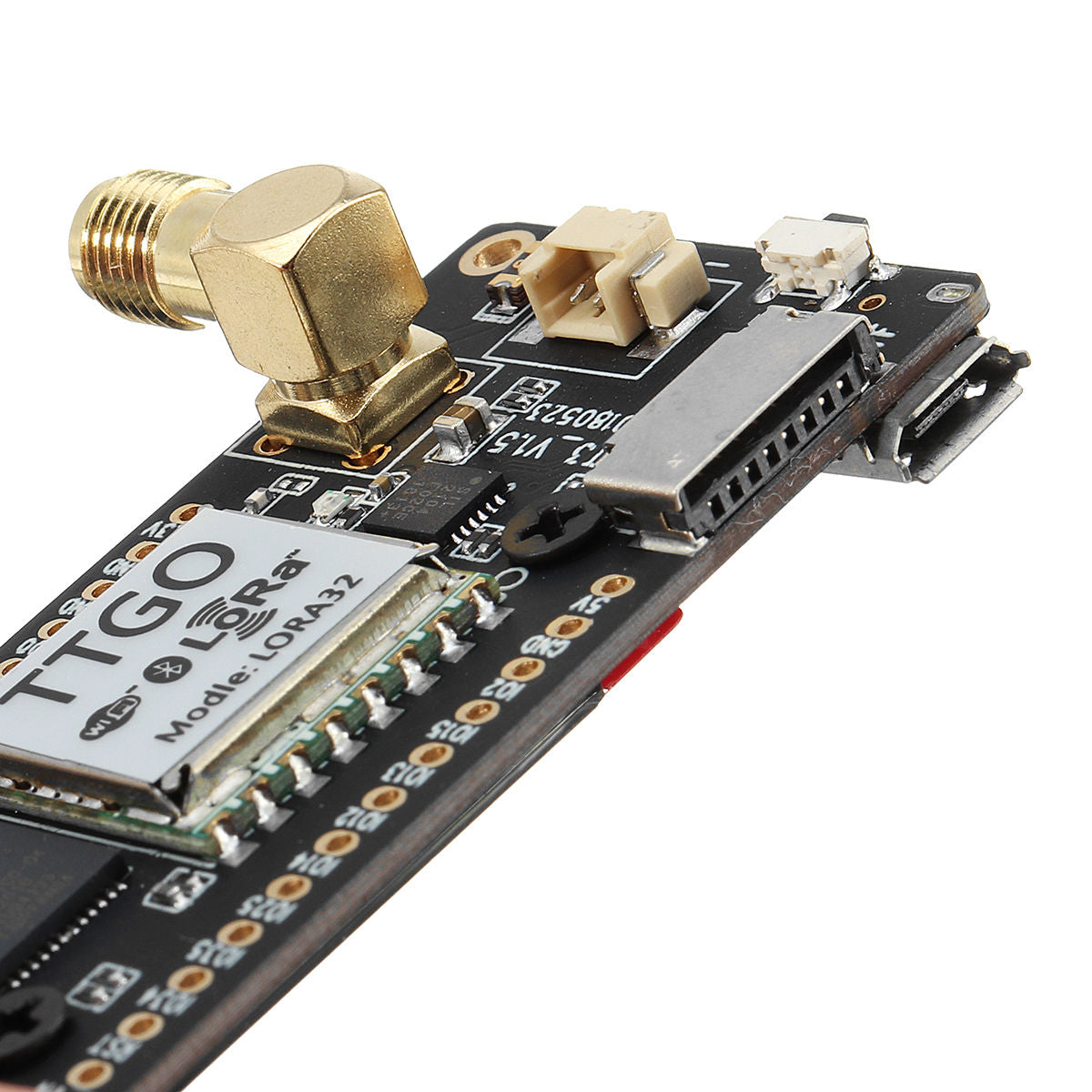

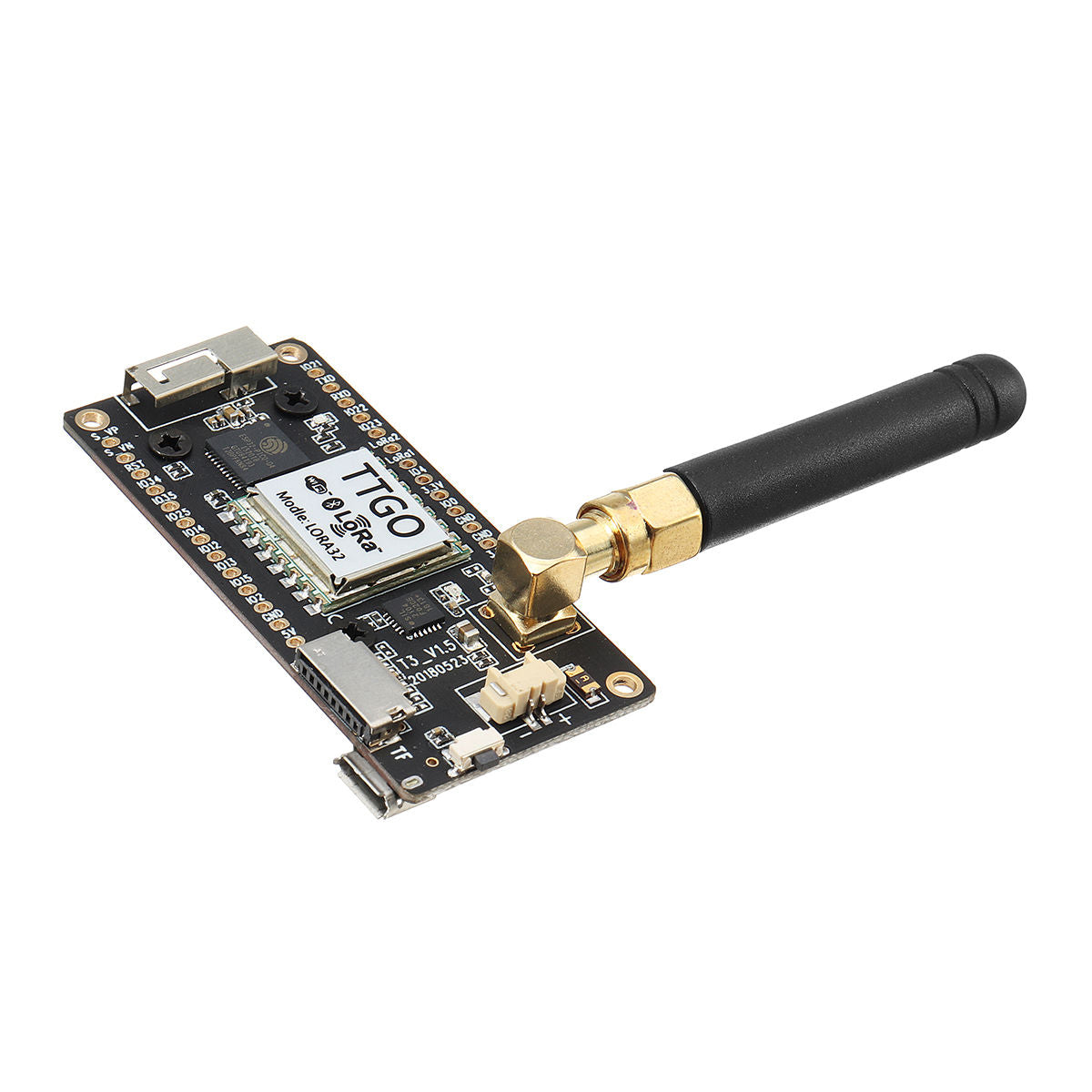

LILYGO? TTGO LoRa32 V2.1 868Mhz ESP32 LoRa OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module ESP-32 SMA IP5306

Name: LILYGO? TTGO LoRa32 V2.1 868Mhz ESP32 LoRa OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module ESP-32 SMA IP5306
Brand: Burnett Canada
SKU: C122-1327406
Price: 41.89 CAD
Availability: InStock

$41.89 CAD

Oferta Agotado

Cantidad

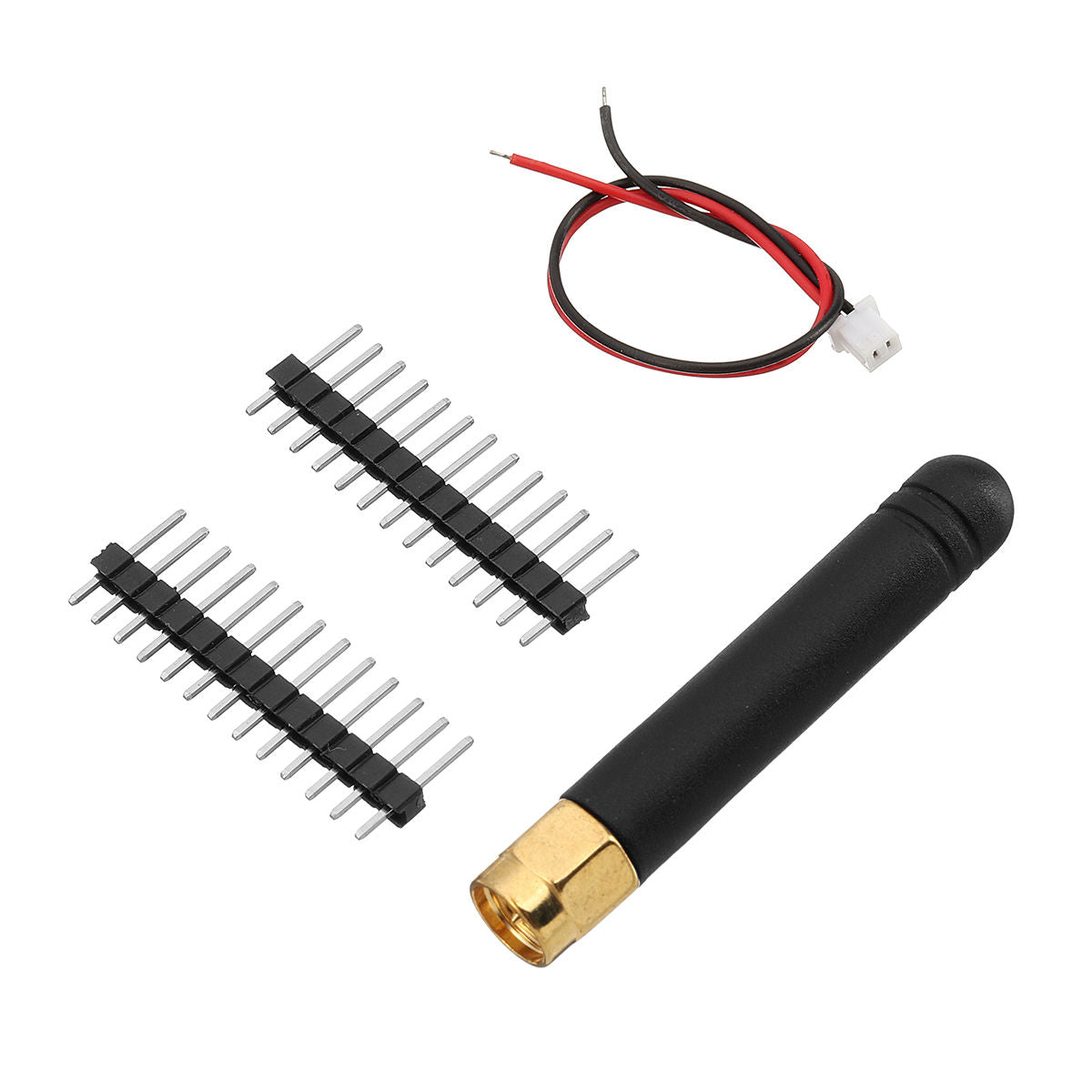

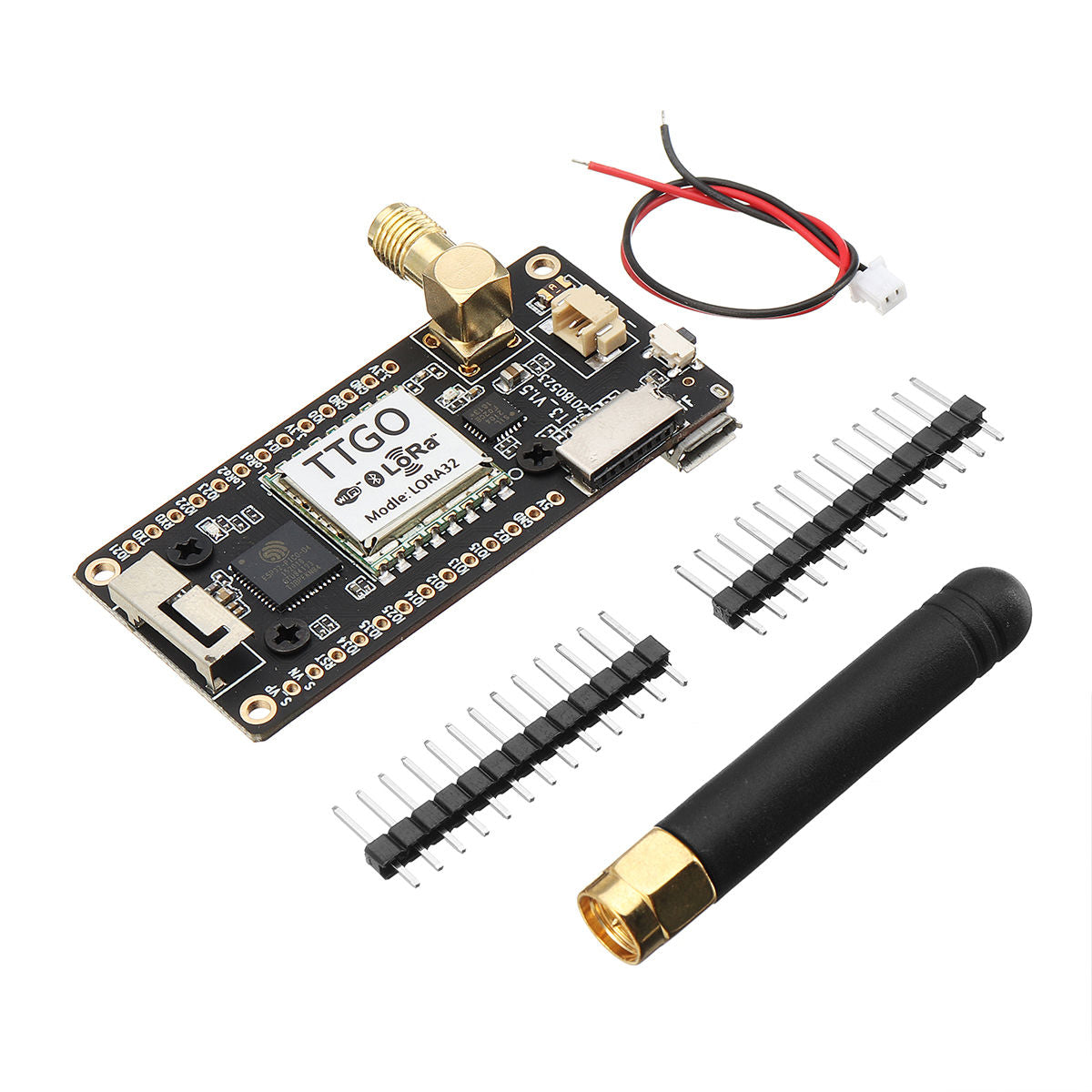

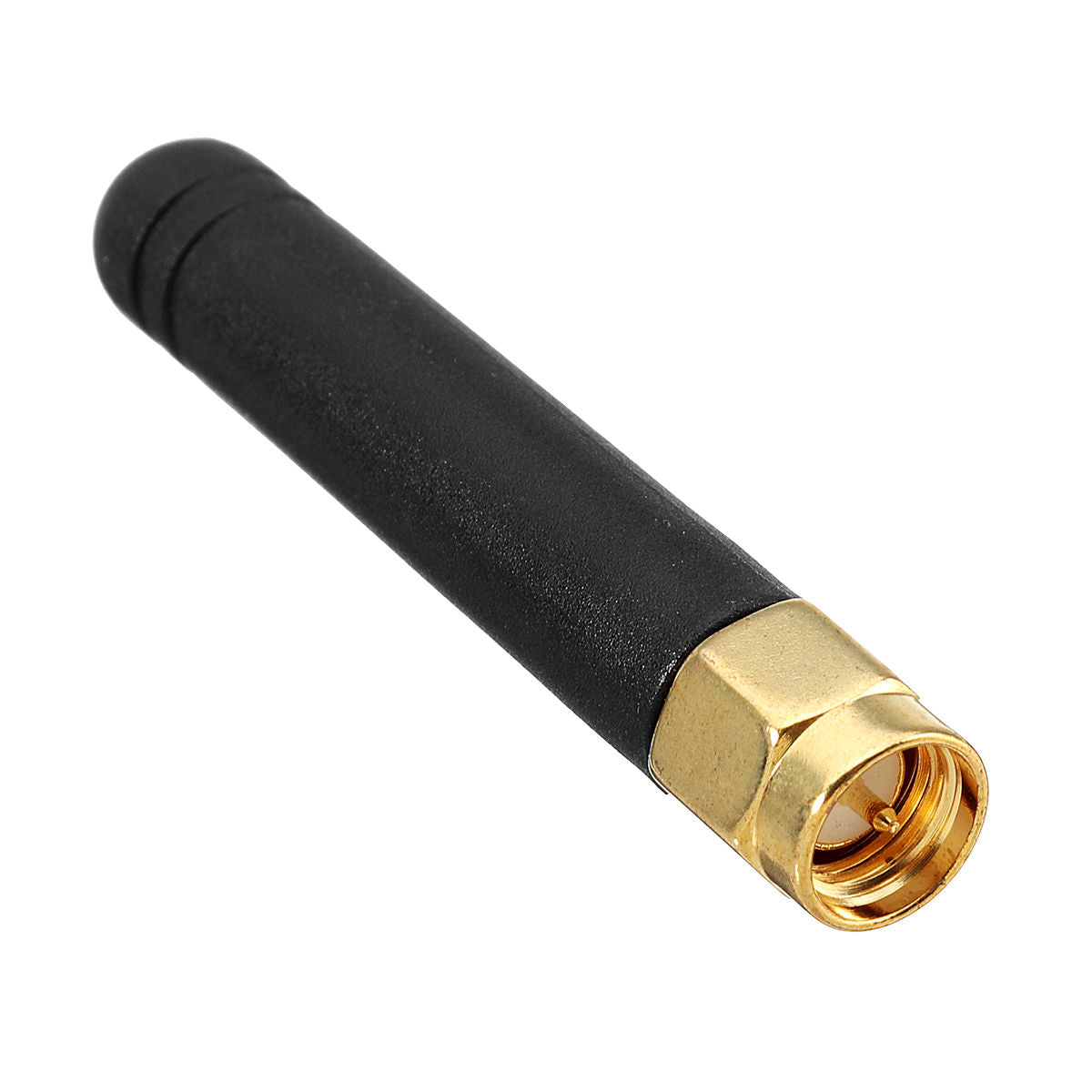

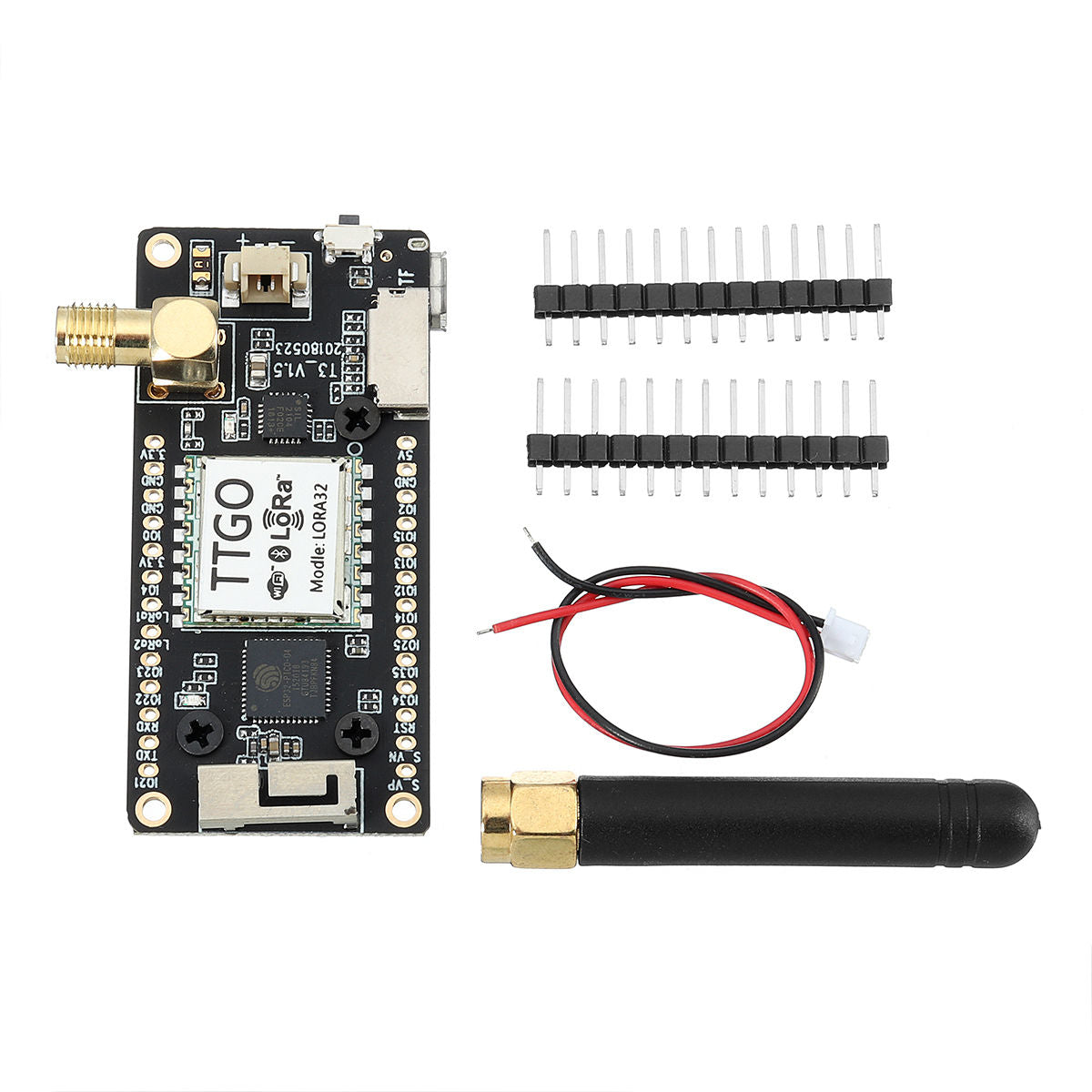

Description: Working voltage: 1.8~3.7VAcceptable current: 10~14mATransmit current: 120mA@+20dBm 90mA@+17dBm 29mA@+13dBmOperating frequency: 868MHzTransmit power: +20dBmReceive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps-136dBm@LoRa &125Khz&SF=12&293bps-118dBm@LoRa &125Khz&SF=6&9380bps-123dBm@FSK&5Khz&1.2KbpsFrequency error: +/-15KHzFIFO space: 64ByteData rate: 1.2K~300Kbps@FSK 0.018K~37.5Kbps@LoRa Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOKInterface form: SPISleep current: 0.2uA@SLEEP 1.5uA@IDLEOperating temperature: -40℃- +85℃Digital RSSI functionAutomatic frequency correctionAutomatic gain control RF wake-up functionLow voltage detection and temperature sensorFast wake-up and frequency hoppingHighly configurable data packet handlerSMA AntennaIP5306More product information, go to: https://github.com/LilyGO/TTGO-LoRa32-V2.1At the TTGO LoRa V2.1, we add the SMA and IP5306 to the board, which make it can do more things. In terms of the power switch, we have changed the switching interaction mode. The added SMA antenna can enhance signal transmission.Package included: 1 x TTGO LoRa32 V2.1 868Mhz Module2 x Pin1 x Antenna1 x Power Cable(Notice:The shipping list does not include battery and SD card)About the lipo charging circuit problem (Important update in 10th September 2018):

After V2.1-1.5 was upgraded to V2.1-1.6, after our tests, the diode components should be used on the charging circuit, but we used a fuse, the diode is unidirectional, and the fuse is bidirectional. This causes the USB voltage to pass directly to the battery. After a long woking time, the battery may become hot or burn, so you cannot use this V2.1-1.6 version to charge the battery! ! ! (Battery can be used, but the battery cannot be charged)

If you want to use this V2.1-1.6 version to charge the battery, you need to replace the fuse in the figure with a diode (Type: BS5819 SOD123 1A) to use the charging function normally. The following is an upgraded picture.
