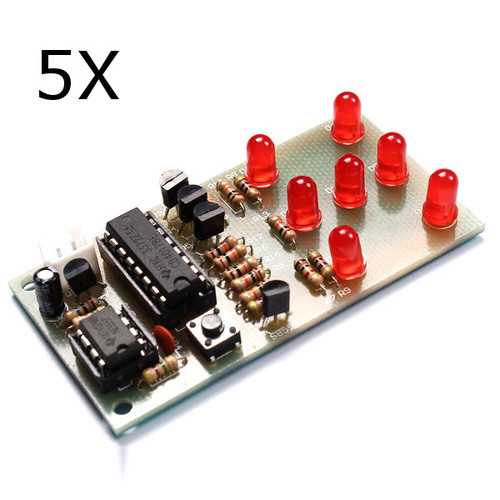

5Pcs Electronic Dice DIY Kit 5mm Red LED Interesting Parts NE555 CD4017 Electronic Production Suite
5Pcs Electronic Dice DIY Kit 5mm Red LED Interesting Parts NE555 CD4017 Electronic Production Suite
Prix habituel
$31.38 CAD
Prix habituel
Prix promotionnel
$31.38 CAD
Prix unitaire
/
par
Impossible de charger la disponibilité du service de retrait

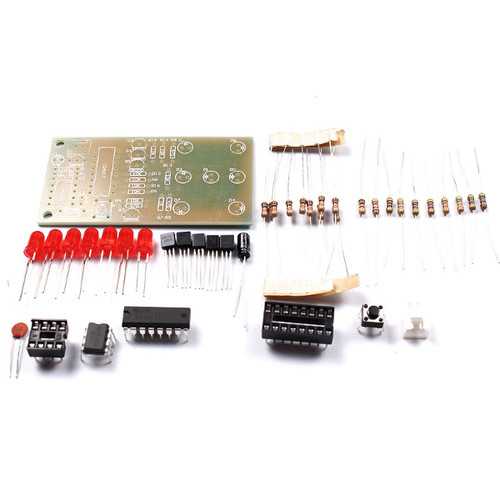

Description:Electronic dice kit is based on the NE555 oscillator circuit and fun circuit CD4017 counter display kit. Can simulate the dice, make fun of the game.Parameters:Supply voltage: 4.5-5VDimensions: 74 x 35mmNote: This is a DIY kit, you need to assemble it.Quantity: 5 setFunction:When a power-up, 7 LED will randomly display a number of points, players press the switch S1,7 all lit LED only after about 7 seconds LED light starts blinking, until finally showed stable points. Throughout the end of the first "crap" process.Circuit:Circuit mainly by the pulse generator and a decade counter circuit. Pulse generator and external elements by NE555 multivibrator, when you press the button S1 when Q1 turns on, the output pulse NE555 3 feet, then five turns the output CD4017 output high, resistors and transistors by different combination, can drive seven LED light to indicate the number of points 1-6 points.Circuit diagram:
