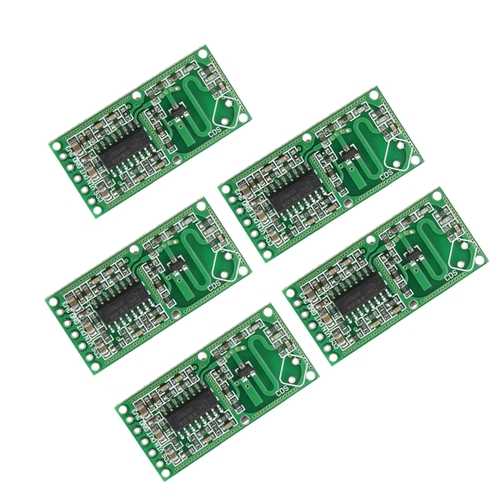

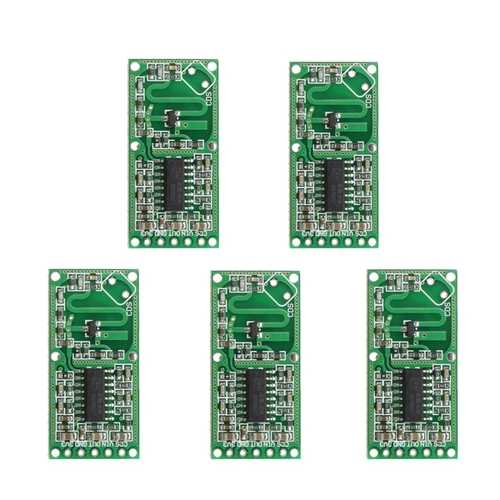

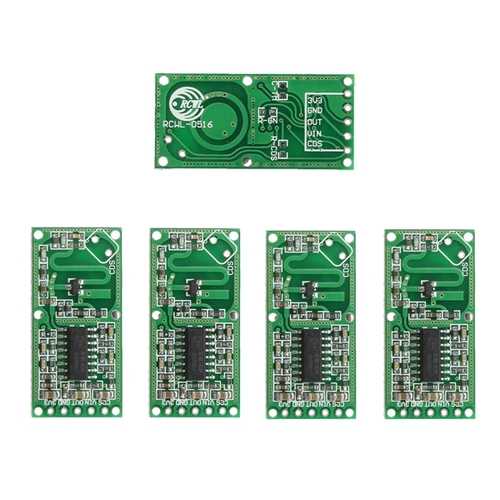

25pcs RCWL-0516 4-28V 3mA Microwave Radar Sensor Human Body Induction Switch Module Prober
25pcs RCWL-0516 4-28V 3mA Microwave Radar Sensor Human Body Induction Switch Module Prober
Prix habituel
$40.54 CAD
Prix habituel
Prix promotionnel
$40.54 CAD
Prix unitaire
/
par
Impossible de charger la disponibilité du service de retrait

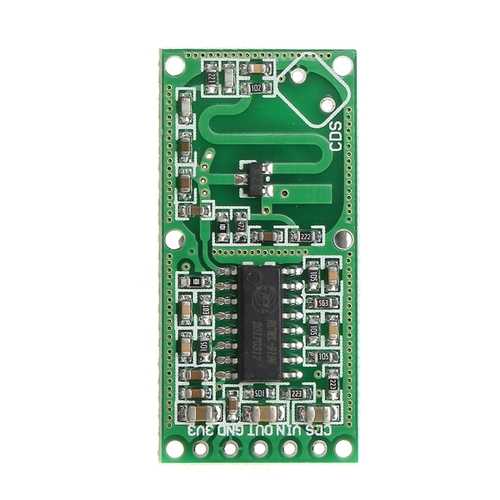

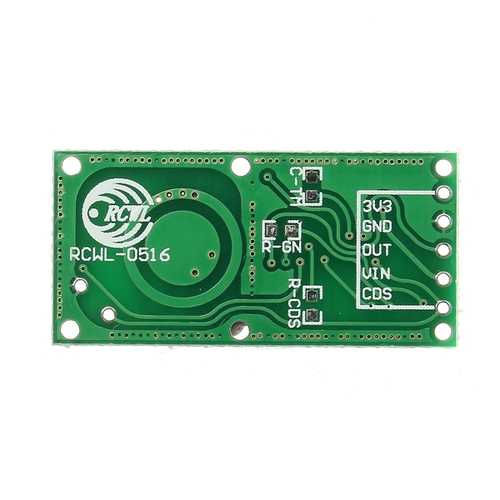

Features:Size: approx. 1.7 x 3.5cm / 0.67 x 1.38"Operating voltage: 4 - 28VOperating current: 2.8mA (typical), 3mA (max)Probe distance: 5-9mTransmitting power: 20mW (typical), 30mW (max)Output voltage: 3.2 - 3.4VOutput voltage driving capacity: 100mAOutput control low level: 0VOutput control high level: 3.3VOperating temperature: -20 - 80 ℃Storage temperature: -40 - 100℃Trigger way: repeat triggerAdjustable distance, high sensitivity, the module has a far sensing distance, reliable, large induction angle and has a wide supply voltage rangeWidely used in a variety of human induction lighting and burglar alarm and so on.Adjustment part introduction:C-TM:Adjust repeat trigger time, default trigger time is 2s; increasing capacitor's capacity will make repeat trigger time longer; and actual counting trigger time can operate as below: Stick capacitor on C-TM, test 9196 3-pin frequency F, repeat trigger time T=(1/f)*32768.R-GN:Probe distance adjustment;connect with resistor and probe distance will become shorter; if not connect, probe distance is 7m; if connect with 1M ohm resistor, probe distance is 5m.R-CDS:Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS, CDS connects with photoresistor, you can close probe function at night.Pin definition:3V3: 3V3 power outputGND: groundOUT: control output; when probe moving objects, it will output high levelVIN: input voltage, 4-28VCDS: enable control chip, lower than 0.7V, OUT will output low level all the time
Package included:25 x RCWL-0516 sensor module
,,
