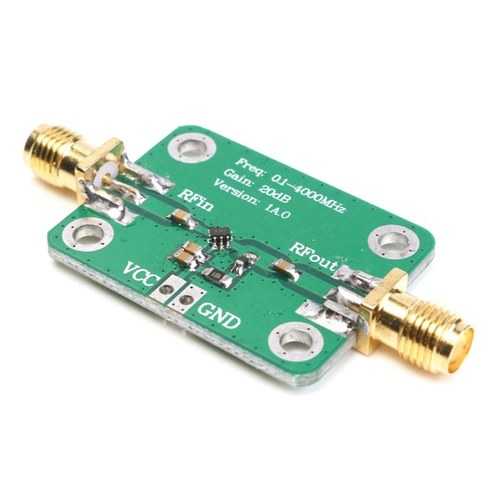

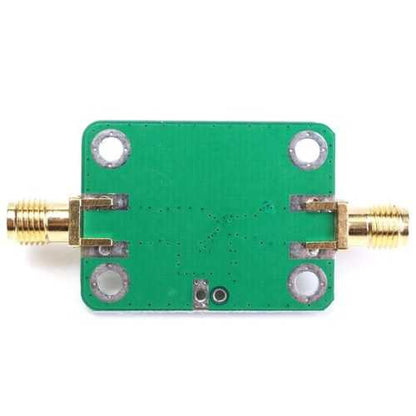

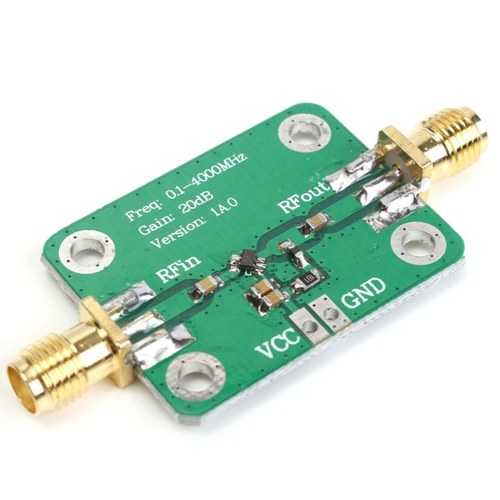

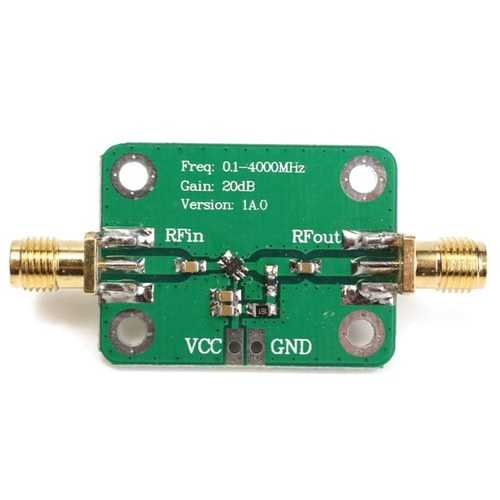

Wideband Amplifier Board Microwave Radio Frequency

Microwave Radio Frequency Wideband Amplifier Board 0.1-4000MHz Gain 20dBSpecification:Frequency range: 0.1--4000MHzSupply voltage: 3.3--5.5VDCMaximum power: + 3dBm (3mW) @ 1dB compression pointOperating current: 14mA (3.3V); 25mA (5.0V)System impedance: 50 ohmsRF connector: SMA female standardFeature:Low voltage, low current, speed, small-signal amplifier.The amplifier has a wide frequency range, gain stability, low supply voltage, current consumption, etc, can be used for amplification of RF signals, widely used in FM radio, remote control receiver, cable TV, gps, Beidou receiver, wifi bluetooth receiver circuit, a low-noise, high overload amplifier!Package included:1 x Amplifier Board
