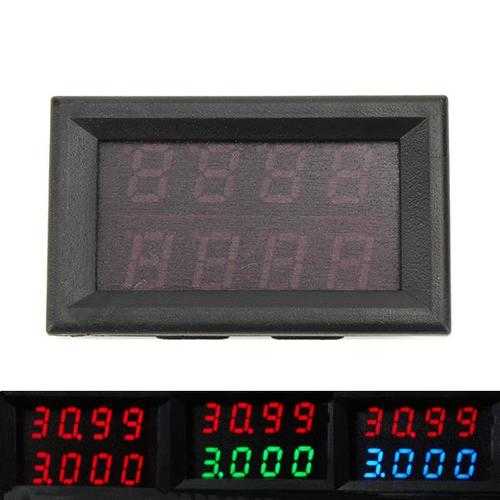

RIDEN? 0-33V 0-3A Four Bit Voltage Current Meter DC Double Digital LED Display Voltmeter Ammeter
RIDEN? 0-33V 0-3A Four Bit Voltage Current Meter DC Double Digital LED Display Voltmeter Ammeter
Regular price
$24.34 CAD
Regular price
Sale price
$24.34 CAD
Unit price
/
per
Couldn't load pickup availability

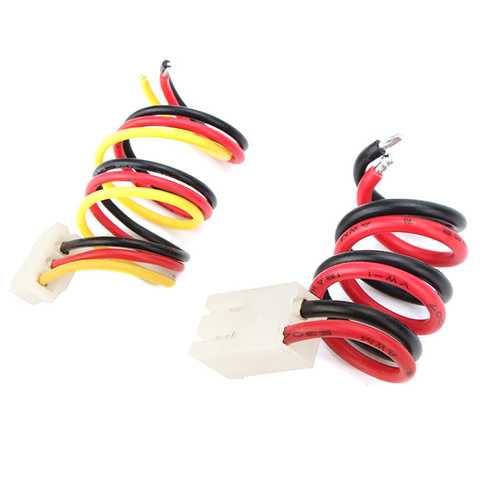

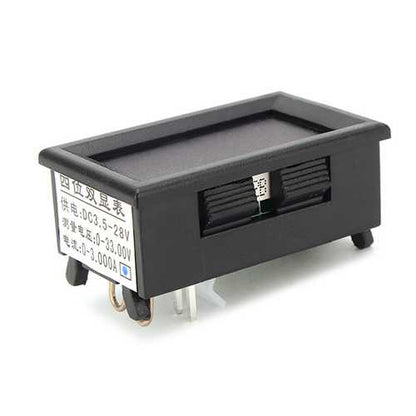

Feature: Weight: 21gDisplay color: Red+Blue, Red+Green (Optional)Display mode: Dual 0.28 LED digital 4 bit tubeupdate rate: About 200 ms/timePhysical size: 48 x 29 x 26 mm (L*W* H)Opening size: 45 x 26 mm (L*W)Supply voltage: 3.5-28VLead wire length: 14 cm(Five wires)Measurement range: DC0.00-33.00V(voltage, Resolution 0.01v ), 0.000-3.000A(current, Resolution 0.001A)Operation temperature: -10 degrees~65 degreesCurrent measurement accuracy: ± (0.3% + 2words) Instruction of wiring: Red thin wire (VCC): Power input + 3.5-28V(NOTE: If the measuring signal is lower than 28V and have abundant power supply, it can be used as power supply for the module [black wire and yellow wire are contacted together to use])Black thin wire(GND): Power input- Measurement signal - 3.5-28VYellow thin wire (VIN): Measurement signal + (0-99.9V)Red thick wire (I+): Current input + (connect with load negative)Black thin wire(I-): Current input - (in series in power supply negative)
Voltage current meterin the measurement system for power supply

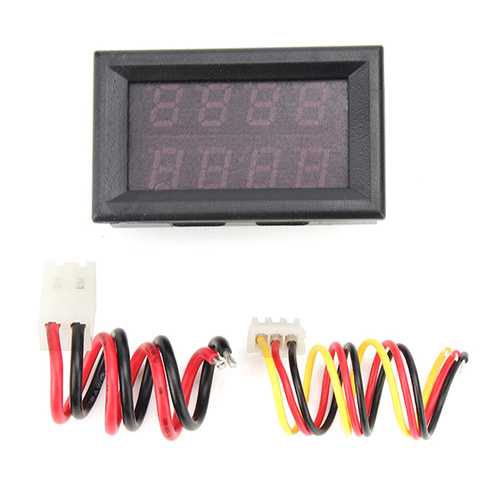

Package included:1 x 0-33V 0-3A Four Bit Voltage Current Meter
Circuit Diagram:Voltage current meterin the measurement system for power supply
