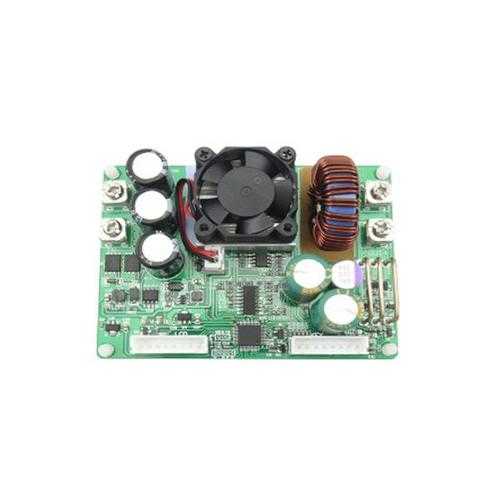

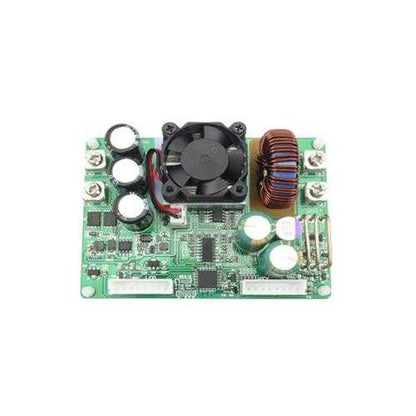

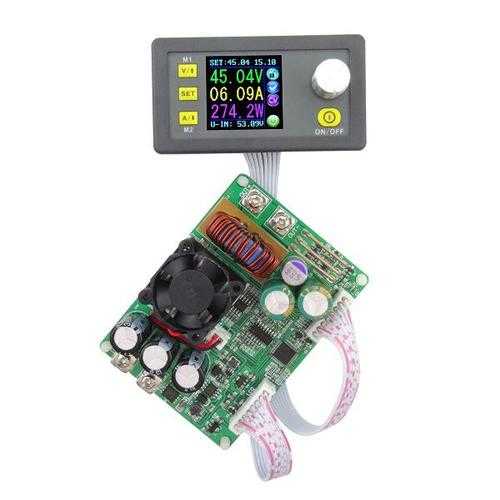

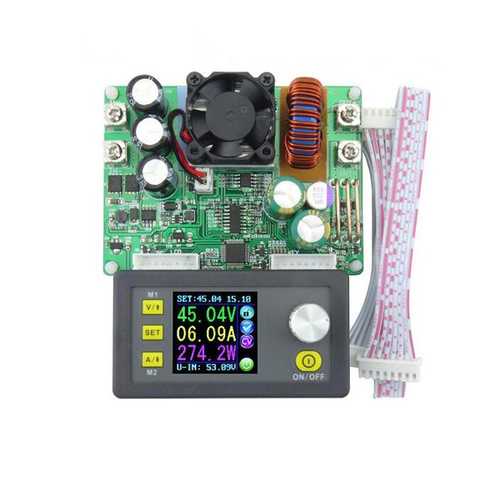

Description: This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value.Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter.Also you can view the preset voltage, input voltage, output voltage, the preset current, output current, output power etc. On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, such as good visual effect, high operability, high-precision and being inset into the device and been widely applied.If you need the housing of this power supply,please click !Technical parameters:Input voltage range: 6.00-60.00V Output voltage range: 0V-50.00VOutput current: 0-15.00A Output power range: 0-750W Product Weight: about 222g Display module size: 79*43*41(mm) (L*W*H)Open size: 71mm*39mm Power module size: 93*71*41(mm) (L*W*H)Length of connecting line: 200mm Fixed hole center distance: 86mm, 64mmOutput voltage resolution: 0.01V Output current resolution: 0.01AOutput Voltage accuracy: ± (0.5% + 1 digit) Output Current accuracy: ± (0.5% + 2 digits)More details:
Note: 1. You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.2. Connection between display part and power part should be according to the corresponding words. Otherwise it will not work by wrong connection.Package included:1 x DP50V15A DPS5015 Programmable Supply Power Module
Item | DP20V2A | DP30V3A | DP50V2A | DP50V5A | DPS3003 | DPS3005 | DPS5005 | DPS3012 | DPS5015 |
Product ID | This one | ||||||||
Difference between DP,DPS and DPH | 1. DPS series are updated version. Panel is different. In DPS series, we change the M1/↑and M2/↓ into V/↑and A/↓. You can press those buttons set the voltage and current fast. We add a new function "set default boot open or close output"Others are not changed.2. DPS5005 and DP50V5A can charge the battery directly, don't need diode. When charging battery, don't connect battery polarity reversely, otherwise, power parts will bunt.Find the difference between DPS and DP see this video https://www.youtube.com/watch?v=ptt931rrXo83, DP power supply and DPS power supply are all buck (step-down) converter. But DPH3205 is buck-boost (step-down and step-up )converter.4, DPS3005-C and DPS5005-c are communication version. You can connect PC and use upper computer | ||||||||
Communication function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
Working mode | Buck mode | Buck mode | Buck mode | Buck mode | Buck mode | Buck mode | Buck mode | Buck mode | Buck mode |
Input voltage | 4.5-23V | 6-35V | 6-55V | 6-55V | 6-40V | 6-40V | 6-55V | 6-40V | 6-60V |
Output voltage | 0-20.0V | 0-32.0V | 0-50.00V | 0-50.00V | 0.00-32.00V | 0.00-32.00V | 0.00-50.00V | 0.00-32.00V | 0.00-50.00V |
Output current | 0-2.00A | 0-3.10A | 0-2.000A | 0-5.000A | 0-3.000A | 0-5.000A | 0-5.000A | 0-12.00A | 0-15.00A |
Output power | 0-40W | 0-99W | 0-100W | 0-250W | 0-96W | 0-160W | 0-250W | 0-384W | 0-750W |
Voltage resolution | 0.1V | 0.1V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V |
Current resolution | 0.01A | 0.01A | 0.001A | 0.001A | 0.001A | 0.001A | 0.001A | 0.01A | 0.01A |
Product size | 79*34*26mm | 79*34*26mm | 79*34*48mm | 79*34*48mm | 79*43*41mm | 79*43*48mm | 79*43*48mm | 79*43*48mm (display )93*71*41mm(power) | 79*43*48mm (display )93*71*41mm(power) |
screen | LCD | LCD | Color LCD | Color LCD | Color LCD | Color LCD | Color LCD | Color LCD | Color LCD |
Fan | NO (don't need) | YES | YES | NO (don't need) | NO (don't need) | NO (don't need) | NO (don't need) | YES | YES |
Charge the battery | NO | NO | NO | Yes | Yes | Yes | Yes | Yes | YES |
Function | Preset output voltage / current Power down storageStore shortcut storage valueExact shortcut storage valueAdjust LCD brightnessOpen or close output2 data groups Preset output voltage / current Power down storageStore shortcut storage valueExact shortcut storage valueAdjust LCD brightnessOpen or close output2 data groups | Preset output voltage / current(in two places by SET KEY)Preset protection value6 running status iconsKey lockData setting and store the specified data groupStore shortcut storage valueExact shortcut M1 or M2 or specified data groupAdjust LCD brightnessOpen or close output10 data groups | Preset output voltage / current(in two places, by V,A button and SET KEY)Preset protection value6 running status iconsKey lockData setting and store the specified data groupStore shortcut storage valueExact shortcut M1 or M2 or specified data groupAdjust LCD brightnessOpen or close output10 data groupsSet default boot open or close output |
,,,,
