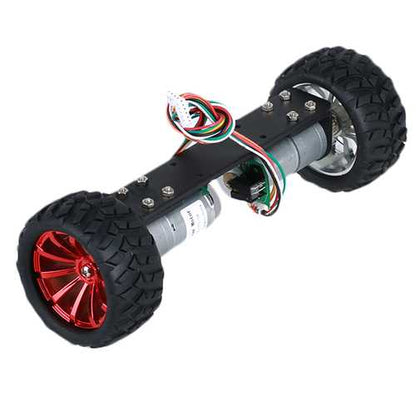

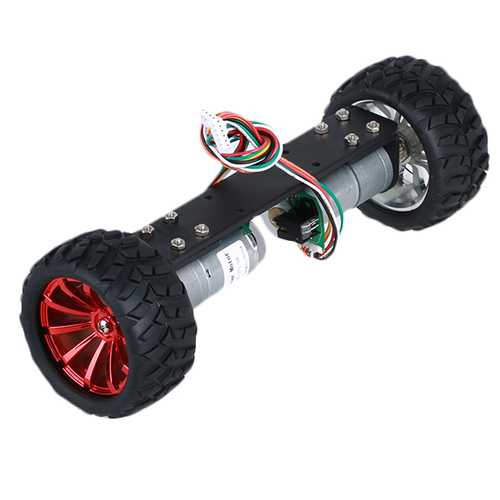

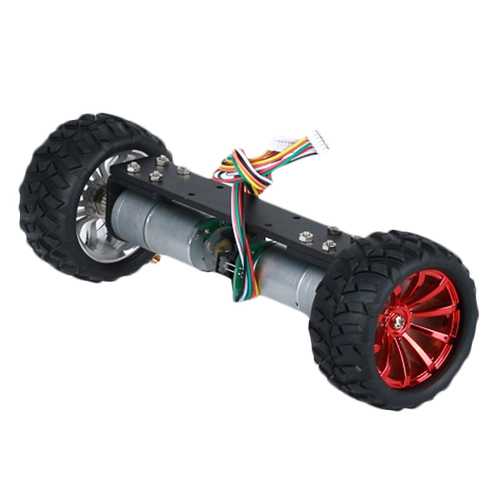

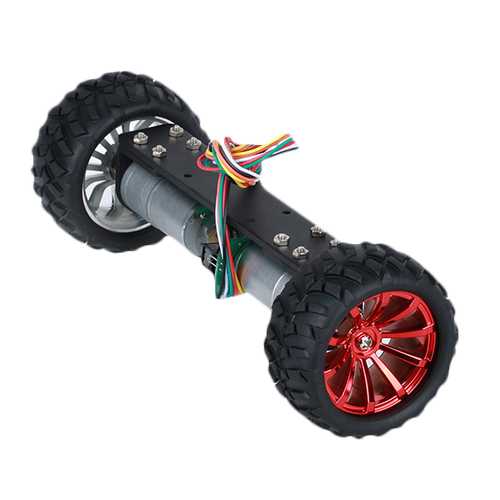

JGA25-360 12V 1.25W Two Wheel Self Balancing Metal Frame Chassis Smart Robot Car DIY Kit
JGA25-360 12V 1.25W Two Wheel Self Balancing Metal Frame Chassis Smart Robot Car DIY Kit
Regular price
$86.44 CAD
Regular price
Sale price
$86.44 CAD
Unit price
/
per
Couldn't load pickup availability
Parameter:- Dimensions: 217x72x72mm- Weight: 508g- Output pulse: 360cpr / circle- Voltage range: 6-24V- Rated voltage: 12V- No-load speed: 201rpm / m- No-load current: 50mA- Load torque: 0.53kg * cm- Rated power: 1.25W- Load current: 300mAWire connection:- Two yellow wires on the left represent two poles of the motor- The green and white lines are pulse output lines. You can connect one of them and connect them to measure the motor's steering.- The red and black is for encoder wiring, red for positive, black for negative, voltage is 3.3V~5VNote:- Do NOT connect the red and black wire wrongly, or it will burn the encoder.- The wire on the other side of the motor has been changed to the Dupont head 2.54 pitch, and a universal pin can be used.Package included:1 x Car Chassis2 x JGA25-360 Motor2 x 25MM Motor Bracket2 x 17-4MM Couplings2 x 72MM Wheel2 x 3MM Acrylic Chassis4 x 12MM Copper Pillar4 x 30MM Copper Pillar
,,,,
