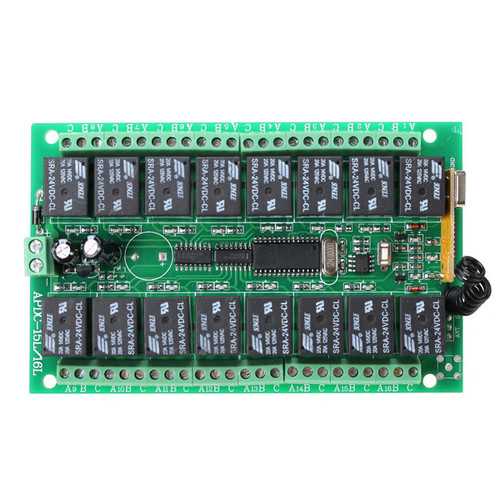

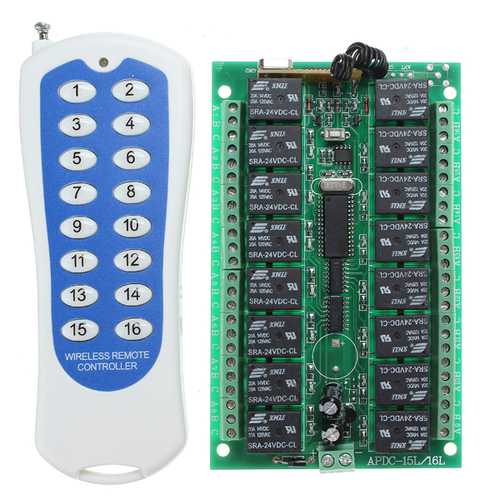

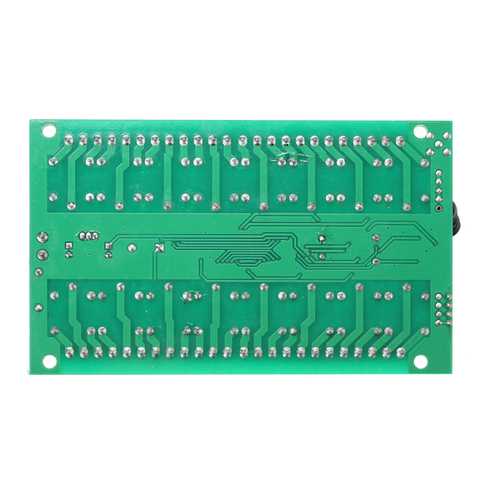

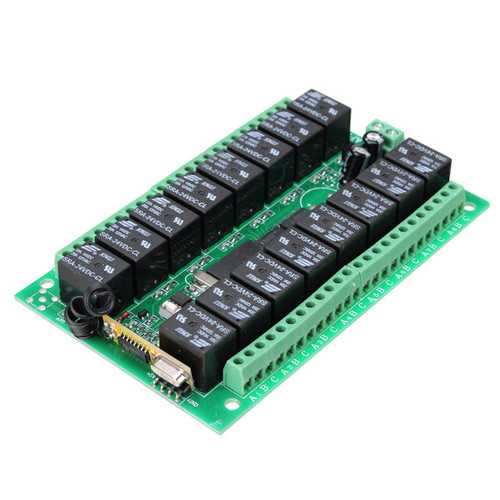

DC 24V 16CH Channel Wireless RF Remote Control Switch With Transmitter For Smart Home
DC 24V 16CH Channel Wireless RF Remote Control Switch With Transmitter For Smart Home
Regular price
$51.74 CAD
Regular price
Sale price
$51.74 CAD
Unit price
/
per
Couldn't load pickup availability
Introduce:This wireless receiver controller, with high security, storage capacity, stable performance, low power consumption characteristics, and easy to use, without the use of traditional jumper or DIP switch code, only need to receive and store the wireless signal, you can achieve supporting the use. If the learned remote controller is lost during use, only need to clear the stored informations in the receiving controller, and the lost remote controller will not be able to remotely control the receiving controller. If you need to get the use the remote controller again, please re-learn the remote.Features:Radio frequency: 315MHzDecode: Learning codeOperating type: Momentary/Toggle/Latch selectableRelay: 10A 120VAC, 20A/14V DCSize: 98mm x 80mm x 27mm12CH transmitter:Radio frequency: 315 MHzOperating voltage: 23A 12VDC BatteryDecode: Fixed code, SolderingTransmitting distance: 800mHow to work:Momentary: Press->ON, Release->OFFToggle: Press->ON, Press again->OFFLatch: Press->ON, Press other->OFFWay of working:There are five kinds of ways: signal self-locking, signal interlock, signal non-lock, signal self-locking and non-lock co-exist1. Signal self-locking - press the remote control 1 key to learn2. Signal interlock - press the remote control 2 key to learn3. Signal non-lock - press the remote control 3 key to learn4. The signal 1 to 8 channel self-locking and 9 to 16 channel non-lock coexist - press the remote control 4 key to learn5. The 1 channel signal self-locking and 2 to 16 channel non-lock coexist - press the remote control 5 key to learnOutput method:1. The signal self-locking: press the remote control 1 key to learnPress the remote control 1 key, and 1 key corresponding relay pull and hold, and then press 1 key, 1 relay is disconnected; press the remote control 2 key, the 2 key corresponds to the relay pull and hold, press the 2 key, the 2 key relay disconnected; 3 ~ 16 key according to this cycle works.2. The signal non-lock: press the remote control 2 key to learnPress and hold the remote control 1 key, and the corresponding 1 key relay pull, release to disconnect the relay, press the No. 2 key, and the corresponding key No. 2 relay pull and hold, release to disconnect the relay; 3-16 keys according to this cycle works.3. The signal interlock: Press the remote control 3 key to learnPress the remote control No. 1 key, the corresponding No. 1 relay pull and hold, press the No. 2 key, No. 1 relay is disconnected, and the corresponding key No. 2 relay pull and hold; 3 ~ 16 key according to this cycle works.4. The signal 1 to 8 channel self-locking and 9 to 16 non-lock co-exist: Press the remote control 4 key to learnCorresponding to the remote control of 15 relays, of which 1 to 8 channel is self-locking function, 9 to 16 channel is non-lock function.5. The first channel signal self-locking and 2 ~ 16 non-lock co-exist: Press the remote control 5 key to learnCorresponding with the remote control of 16 relays, of which the first channel is self-locking function, 2 to 16 channel is non-lock function.Note: If you want to learn another functions, please clear the code and re-learn other codes.We don't supply any instructions, please note about this before you buy.Learn method:Press the learning key, after the light on release and enter learning state. According to your needs to select a key to learn, after receiving the signal, the indicator lights flashing once means learning is success.Clear method:Press and hold the learning button about 8 seconds until the indicator goes out indicating that it has cleared successfully. The receiver can store up to 30 different remote control codes.Package includes:1 x DC24V Remote Control Switch
