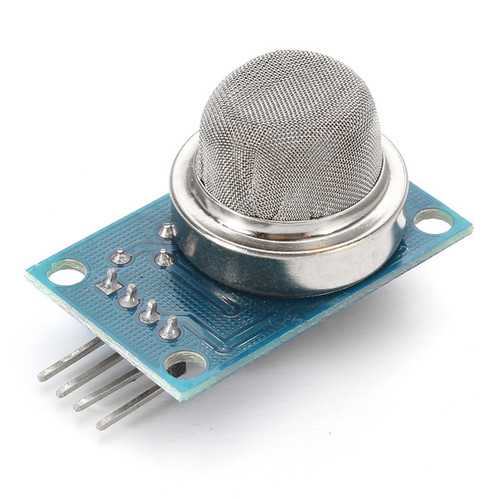

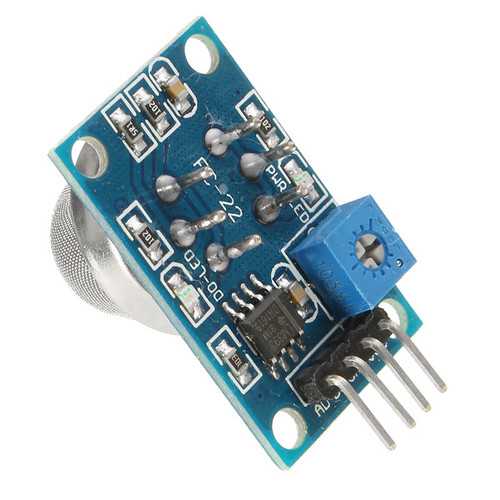

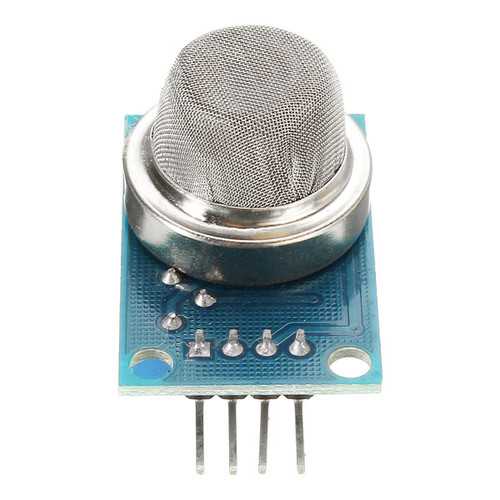

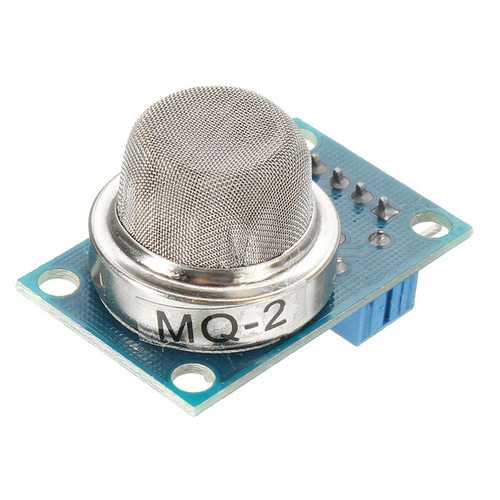

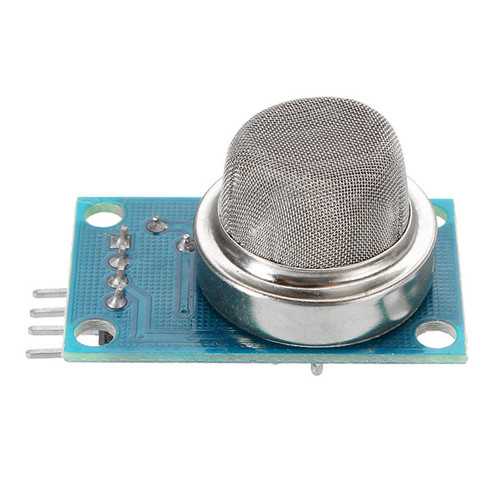

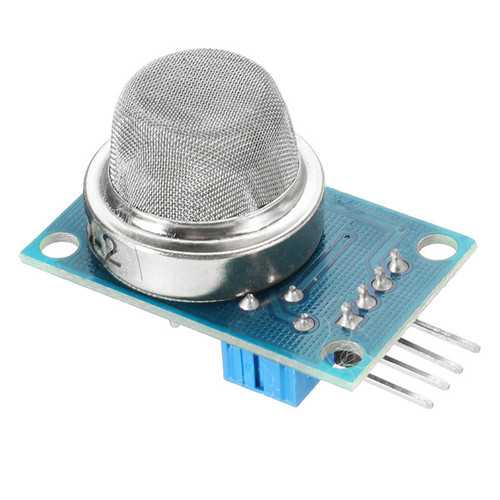

MQ-2 Smoke Gas LPG Butane Gas Sensor Module Tester

Name: MQ-2 Smoke Gas LPG Butane Gas Sensor Module Tester
Brand: Burnett Canada
SKU: C122-1144079
Price: 14.89 CAD
Availability: OutOfStock

$14.89 CAD

Sale Sold out

Quantity

Features: 1. Using high-quality dual-panel design, with power indicator and TTL signal output instructions 2. there are four screw holes for easy positioning 3. Analog output voltage with the higher concentration of higher voltage 4. TTL output valid signal is low. (Low-level signal when the output light can be directly connected to the microcontroller or relay module) 5. The switching signal having a DO (TTL) output and analog output AO Special note: After the sensor is powered, needs wait about 20S, measured data was stable, heat sensor is a normal phenomenon, because the internal heating wire. Specifications: Size: 32 x 22 x 27mm Chip: LM393, ZYMQ-2 gas sensors Working voltage: DC 5V AO output :0.1-0 .3 V (relative to pollution), the maximum concentration of a voltage of about 4V DO output: TTL digital 0 and 1 (0.1 and 5V) Input voltage: DC5V Power consumption (current): 150mA Package included: 1 x MQ-2 gas sensor module If you want another model, you can click on the ID

Model	Gas Detection	Item ID
MQ2	flammable gas/smoke
MQ3	alcohol steam
MQ4	Natural gas/Methane
MQ5	Liquefied gas/Methane/Coal gas /LPG
MQ6	Liquefied gas/Isobutane/Propane/LPG
MQ7	Carbon monoxide
MQ8	hydrogen
MQ9	Carbon monoxide flammable gas
MQ131	Ozone Concentration
MQ135	Ammonia/sulfide/benzene vapor
A set of MQ
