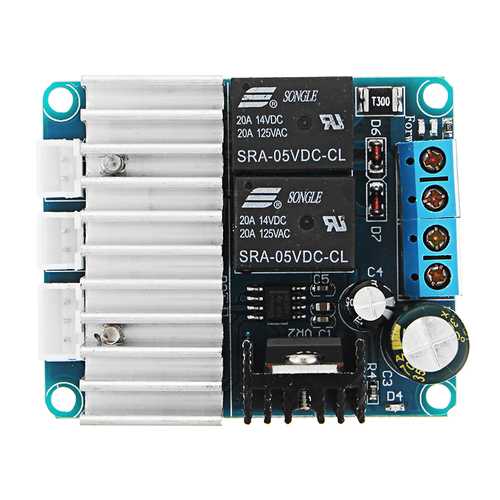

DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller

Name: DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
Brand: Burnett Canada
SKU: C122-1278643
Price: 27.04 CAD
Availability: InStock

$27.04 CAD

Sale Sold out

Quantity

Feature:

Note: This PMW reversible stepless speed controller is a lock-free button switch, loose button motor does not rotate.

Input voltage: DC7-30V

Output voltage: Linear under load

Output current: 0-10A

Maximum power: 300W

Speed type: adjust flow

Speed control method: Potentiometer (0-5V)

Speed range: 0 - 100%

Control frequency: 25KHZ

Wiring type: Terminals

Knob line length: 20CM

Module size: 56mm*46mm*25mm (length * width * height )

Instructions:

1. Connect the DC power supply to the positive and negative poles. The power indicator light is on. Ensure that the DC power supply voltage is greater than 7V and less than 30V to ensure that the power output meets the motor work requirements.

2. Connect the motor, the motor line has no direction.

3. Hold the lock-free key switch, the corresponding indicator light, the motor forward or reverse, adjust the potentiometer knob, control the motor speed.

4. Release the switch, the motor stops rotating.

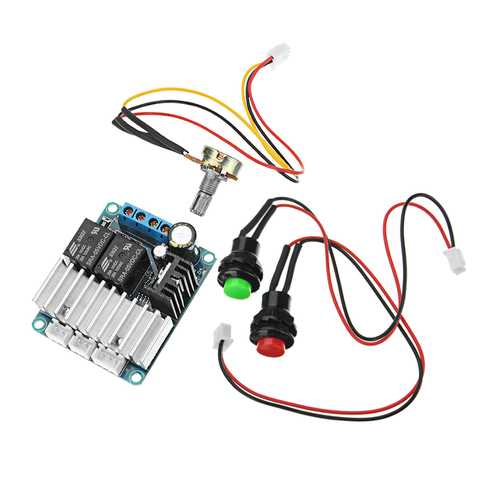

Package includes:

1 x Motor Controller

2 x Button with cable

1 x Potentiometer with cable

,,,,,,,,
