Description:

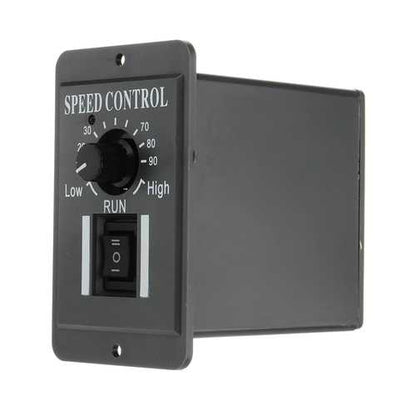

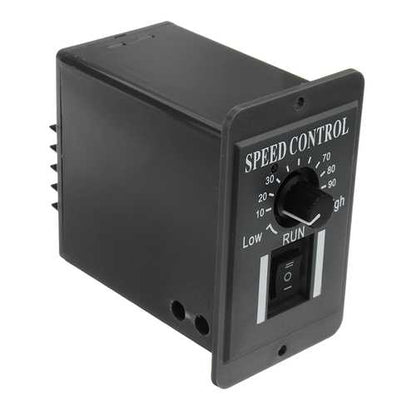

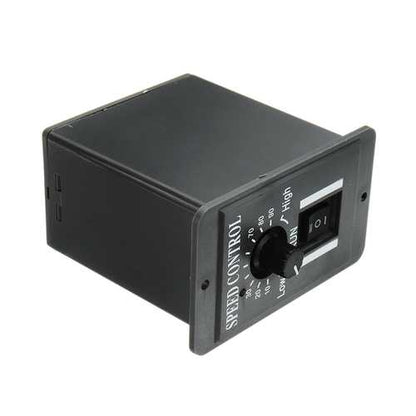

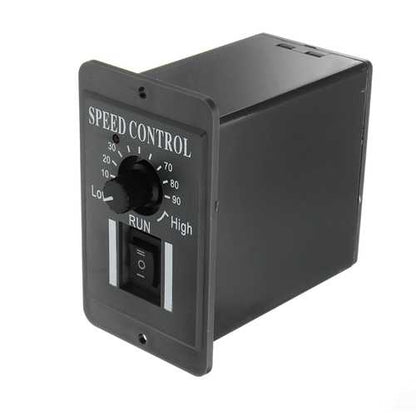

Model: CCM2US
Input voltage range: DC 10V-60V
Rated current: continuous operating current within 6A
Function: control DC brush motor speed, forward, stop, reverse

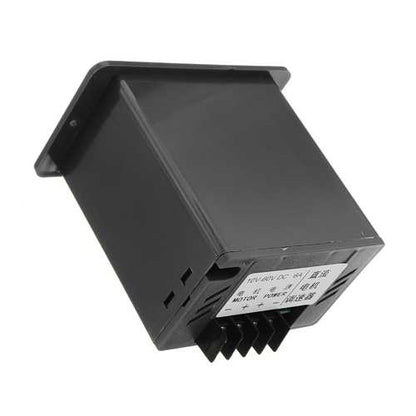

Installation method: panel type, and wiring according to wiring diagramNote:
The input of the DC motor governor is DC, and it cannot be directly connected to AC (for example, household 220V AC), otherwise it will burn out.
The positive and negative poles of the DC power cannot be reversed, otherwise the governor will be bad.
The motor is not divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.

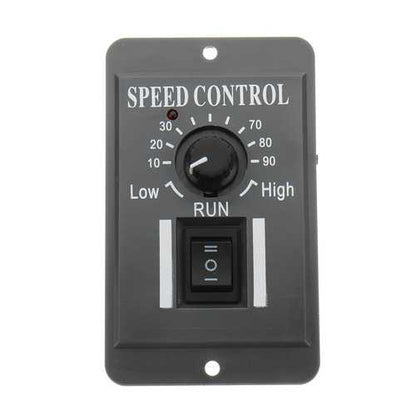

The potentiometer knob can change the governor output duty cycle, thus changing the motor speed.
Package Included:1 x Motor Speed Controller
