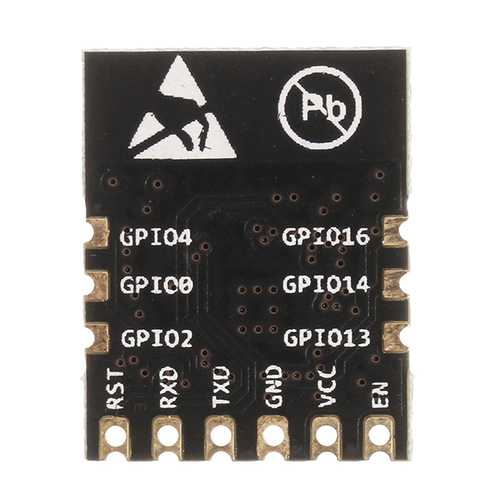

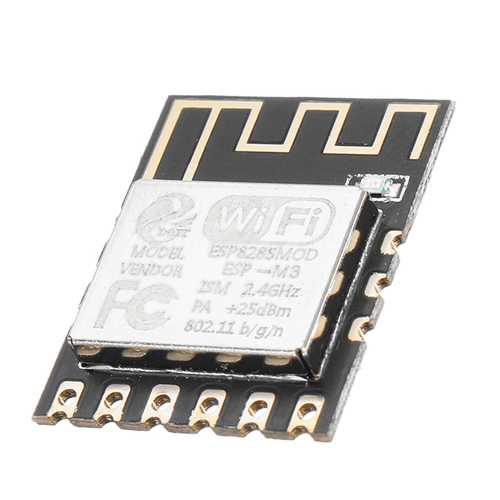

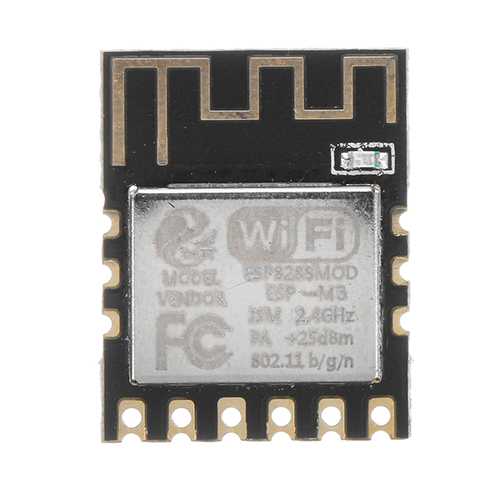

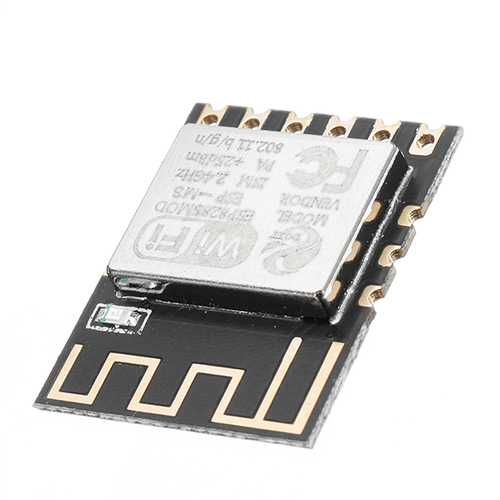

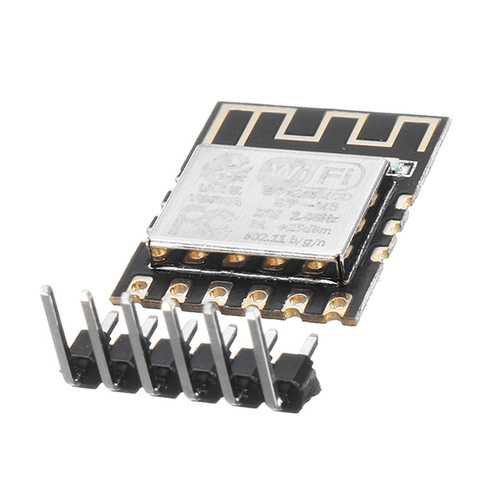

3Pcs Mini Ultra-small Size ESP-M3 From ESP8285 Serial Wireless WiFi Transmission Module
3Pcs Mini Ultra-small Size ESP-M3 From ESP8285 Serial Wireless WiFi Transmission Module
常规价格
$28.39 CAD
常规价格
促销价
$28.39 CAD
单价
/
单价
无法加载取货服务可用情况
Overview: What is ESP8285? ESP8285=ESP8266+1M Flash, the bearing high temperature is 125℃ (the one for ESP8266 is just 85℃). More important, the code programmed in ESP8266 can be used for ESP8285 intactly. ESP-M3 is encapsulated by the high performance chip ESP8285, which is equal to ESP8266 chip plus 1M Flash. The chip ESP825 is encapsulated a advanced Tensilica's L106 32-bit CPU, together with SRAM. ESP825 has the full and complete WiFi fuction, which can used independently and alsoused as a slaver with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design. Features: Ultra-small size; Support serial to WiFi; Wireless transparent transmission; Long distance transmission with ultra-low power; Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266. Specification: https://github.com/Smart/SZDOITWiKi/wiki SOC characteristics: Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz, and RTOS; Built-in TCP/IP protocol; Built-in one-channel 10-bit high precision ADC; Outboard interface: HSPI, UART, I2C, I2S, IR Remote Controk, PWM, GPIO; Deep sleep current is 10uA, the cut-off current is smaller than 5uA; Wake,connect and transmission data package within 2ms; The consume power is smaller 1.0Mw (DTIM3) when at stand by status; Built in 1M byte for SPI Flash. WiFi characteristics: Support 802.11 b/g/n/e/I; Support Station, Soft AP, Soft AP+STA mode; Support WiFi Direct (P2P); Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration. P2P finding, P2P GO mode/ GC mode and P2P power manage WPA/PA2PSK and WPS; 802.11 securitycertification: pre-certification and TSN Support 802.11n (2.4GHz); 802.1h/RFC1042 frame encapsulation; Support seam less roaming; Support AT remote update and cloud update (OTA); Support Smart Config function (including Android and Ios device). Module interface: 2* UART; 1*ADC; 1*En; 1*wakeup pin; 1*HSPI; 1*I2C; 1*I2S More than 10*GPIOs Working temperature: -40℃-+125℃; Module size: 26.8mm*16mm Electronical appliance: Smart power plug, smart light; Infant monitor; Sensor networks; Security ID label; Wireless location beacon; Home automation; Mesh networks; IP video camera; Wearable electronics; Wireless location recognition; Industrial wireless control; Package included: 3 x ESP-M3 Wireless WiFi Transmission Module
,,,,,,
