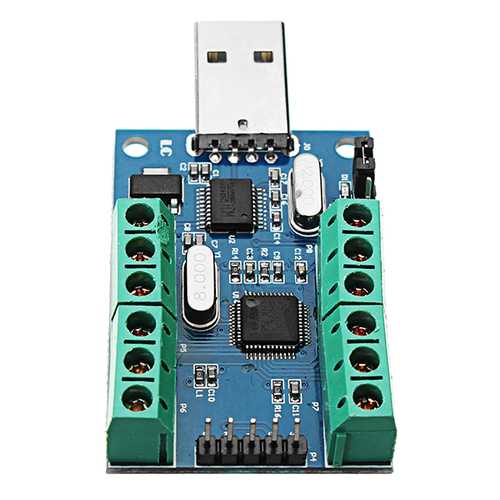

USB Interface 10 Channel 12Bit AD Sampling Data Acquisition STM32 UART Communication ADC Module
USB Interface 10 Channel 12Bit AD Sampling Data Acquisition STM32 UART Communication ADC Module
常规价格
$27.13 CAD
常规价格
促销价
$27.13 CAD
单价
/
单价
无法加载取货服务可用情况
Overview:STM32 10-channel ADC module uses the internal 10-channel ADC resources of ST's STM32F103 family of microcontrollers as the sampling core. Having better accuracy and the ADC data can be uploaded to PC.
Description:1, Onboard STM32F103C8T6 master chip;2, Onboard CH340 serial port to USB port chip, it is convenient to see AD sampling results on your PC;3, Reserved UART serial communication interface, can be connected to extern MCU;4, Analog input channels: 10-channel single-ended inputs;5, Sampling voltage input range: 0-3.3V;6, Power supply voltage: 5V / 3.3V7, Resolution: 12 Bit (4096);8, Infos: https://pan.baidu.com/s/1dFw3tYDFeature:Board size: 50*33mmIN0-IN9: AD sampling voltage input;GND: power supply negative / sampling voltage common ground interface;TX, RX: UART communication interface3V3 / 5V: reserved 3.3V / 5V power input port Testing example: when IN0-IN4 connect to 0V and IN5-IN9 connect to 3.3V, we can see as below:Package included:1 x STM32 UART Communication ADC Module
