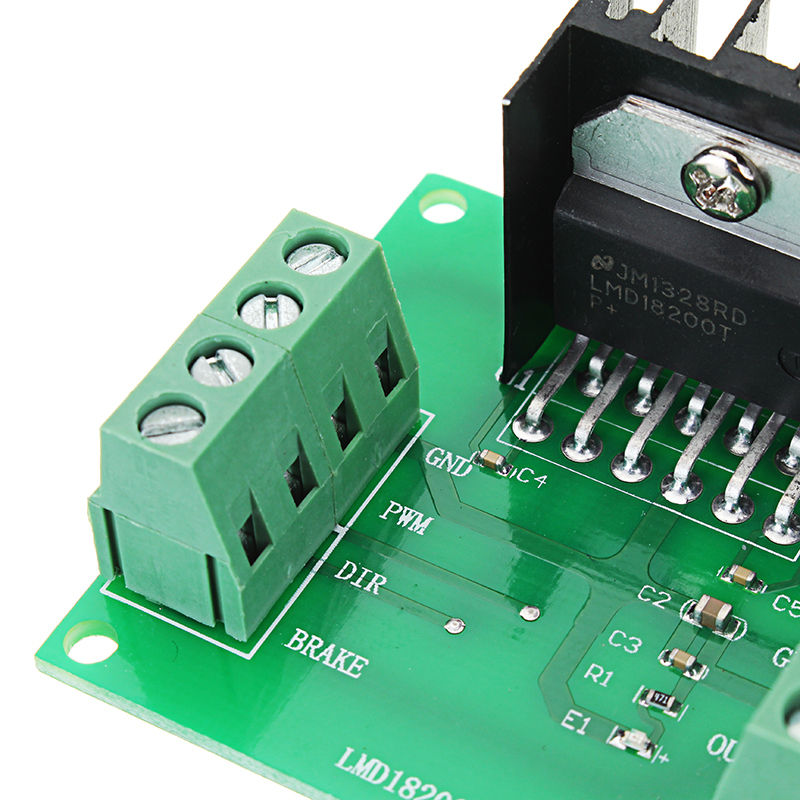

3A 75W DC PWM Speed Adjustable Motor Driver Module LMD18200T Geekcreit for Arduino - products that work with official Arduino boards

Name: 3A 75W DC PWM Speed Adjustable Motor Driver Module LMD18200T Geekcreit for Arduino - products that work with official Arduino boards
Brand: Burnett Canada
SKU: C122-1278639
Price: 25.52 CAD
Availability: InStock

$25.52 CAD

促销售罄

数量

Feature:

LMD18200T DC Motor Driver Module is an H-bridge driver component dedicated to the DC motor.

Integrated CMOS control circuitry, and DMOS power device on the same chip, the use of which may constitute a complete motion control system with the main processor, motors and incremental encoders.

LMD18200 widely used in printers, robots With power indicator, and speed is adjustable.

Anti-jamming with a continuous flow protection.

LMD18200T DC Motor Driver Module is an H-bridge driver component dedicated to the DC motor.

Integrated CMOS control circuitry, and DMOS power device on the same chip, the use of which may constitute a complete motion control system with the main processor, motors and incremental encoders.

LMD18200 widely used in printers, robots

With power indicator, and speed is adjustable.

Anti-jamming with a continuous flow protection.

Can individually control a DC motor.

PWM can help to achieve smooth speed regulation.

Can achieve turning and reversing.

Specification:

Material: CCL

Main chip: LMD18200

Working voltage: Control signal DC 4.5-5.5V; drive motor voltage: 10-30V

Maximum output current: 3A (instantaneous peak current 6A)

Maximum output power: 75W
