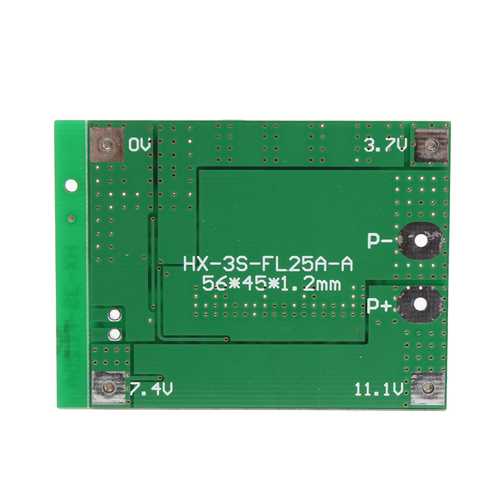

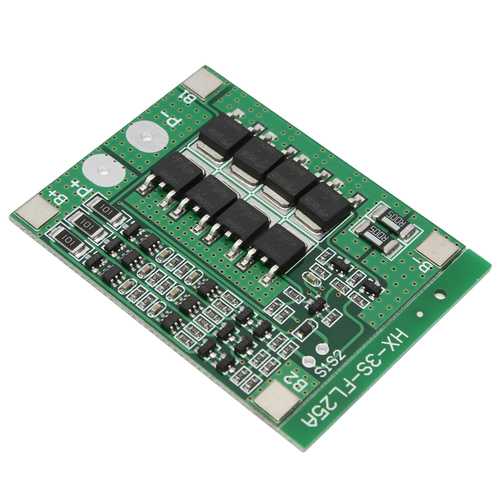

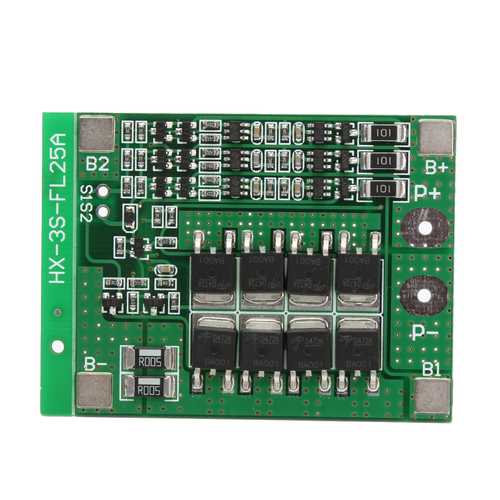

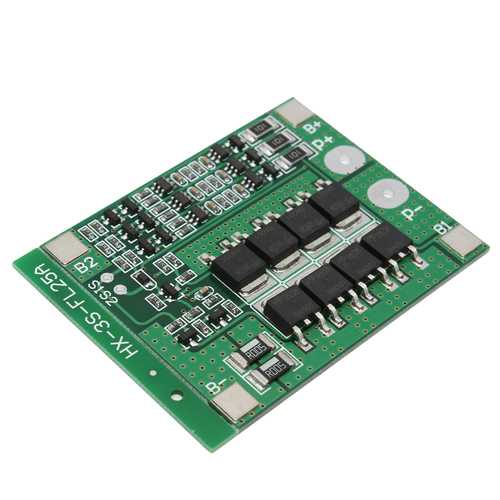

3S 11.1V 25A 18650 Li-ion Lithium Battery BMS Protection PCB Board With Balance Function
3S 11.1V 25A 18650 Li-ion Lithium Battery BMS Protection PCB Board With Balance Function
定價
$21.64 CAD
定價
售價
$21.64 CAD
單價
/
每
無法載入取貨服務供應情況
Description:Model: HX-3S-FL25A-ASize: about 56mm*45mm*1.2mmOver voltage range: 4.25~4.35V ± 0.05VOver discharge voltage range: 2.3~3.0V ± 0.05VMaximum operating current: 0~25AMaximum transient current: 34~40AQuiescent current: less than 30uAInternal resistance: less than 100MohmWorking temperature: -40℃ ~ +50℃Storage condition: -40℃ ~ +80℃Effective life: more than30000hShort circuit protection: Yes, delayed self recoveryNote:1. Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+),Do not deliberately short circuit.2. After the wire is connected, needs to charge first, then have output.3. When the battery is connected in series with 3 groups ,please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use.4. Do not mix the good battery and the battery.5. It will be better the capacity of the battery internal resistance is closer.Package included:1 x Battery Protection Board
,,,,
