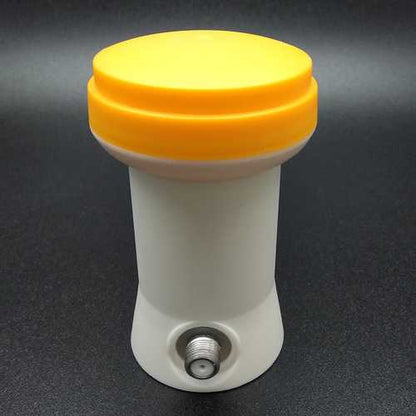

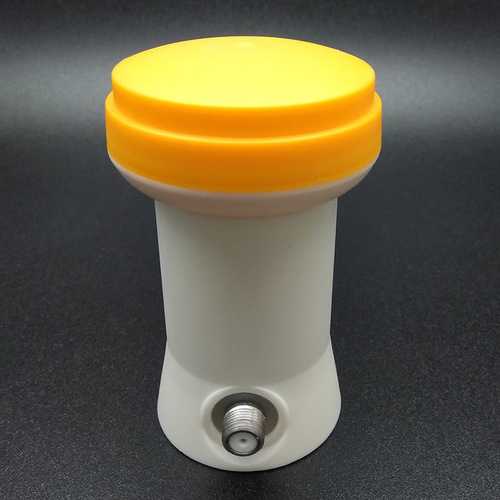

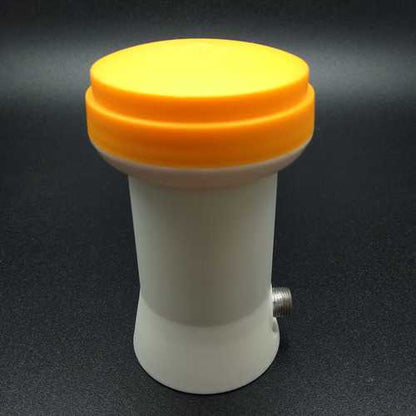

Universal Full HD DIGITAL KU-BAND Single LNB Satellite Receiver
Universal Full HD DIGITAL KU-BAND Single LNB Satellite Receiver
定價
$25.95 CAD
定價
售價
$25.95 CAD
單價
/
每
無法載入取貨服務供應情況
Features:
IN PUT: 10.7-12.75GHZ
L.O.: 9.75/10.6GHZ
NOISE: 0.3DB
GAIN: 60DBSpecifications:
| Item | Specification | Item | Specification |
| Input Frequency Range | Low Band:10.70~11.70GHz | L.O. Phase Noise | -50dBc/Hz@1KHz |
| High Band:11.70~12.75GHz | -75dBc/Hz@10KHz | ||
| -95dBc/Hz@100KHz | |||
| Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
| High Band:1100~2150MHz | |||
| Noise Figure | Low Band:0.6dB(Typ.) | Output VSWR | 2.0:1(Max.) |
| High Band:0.6dB(Typ.) | |||
| Conversion Gain | 60dB(Typ.) | Output Power | 0dBm (Min.)(at 1dB gain |
| compression) | |||
| Gain Flatness | ±0.5dB/26MHz | Connector Type | 75Ω Female Connector |
| Cross POL. Isolation | 25dB(Typ.) | DC Current Consumption | 80mA(Typ.) |
| L.O. Frequency | Low Band:9.75GHz | Low/High Band Switching | Low Band:0Hz |
| High Band:10.60GHz | High Band:22KHz±4KHz | ||
| L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | POL. Switching Voltage | 10.5~14.0V @VP |
| ±2.0 MHz (Max.)@-30℃~+70℃ | 16.0~20.0V @HP |
Package Included:1 x KU-Band
